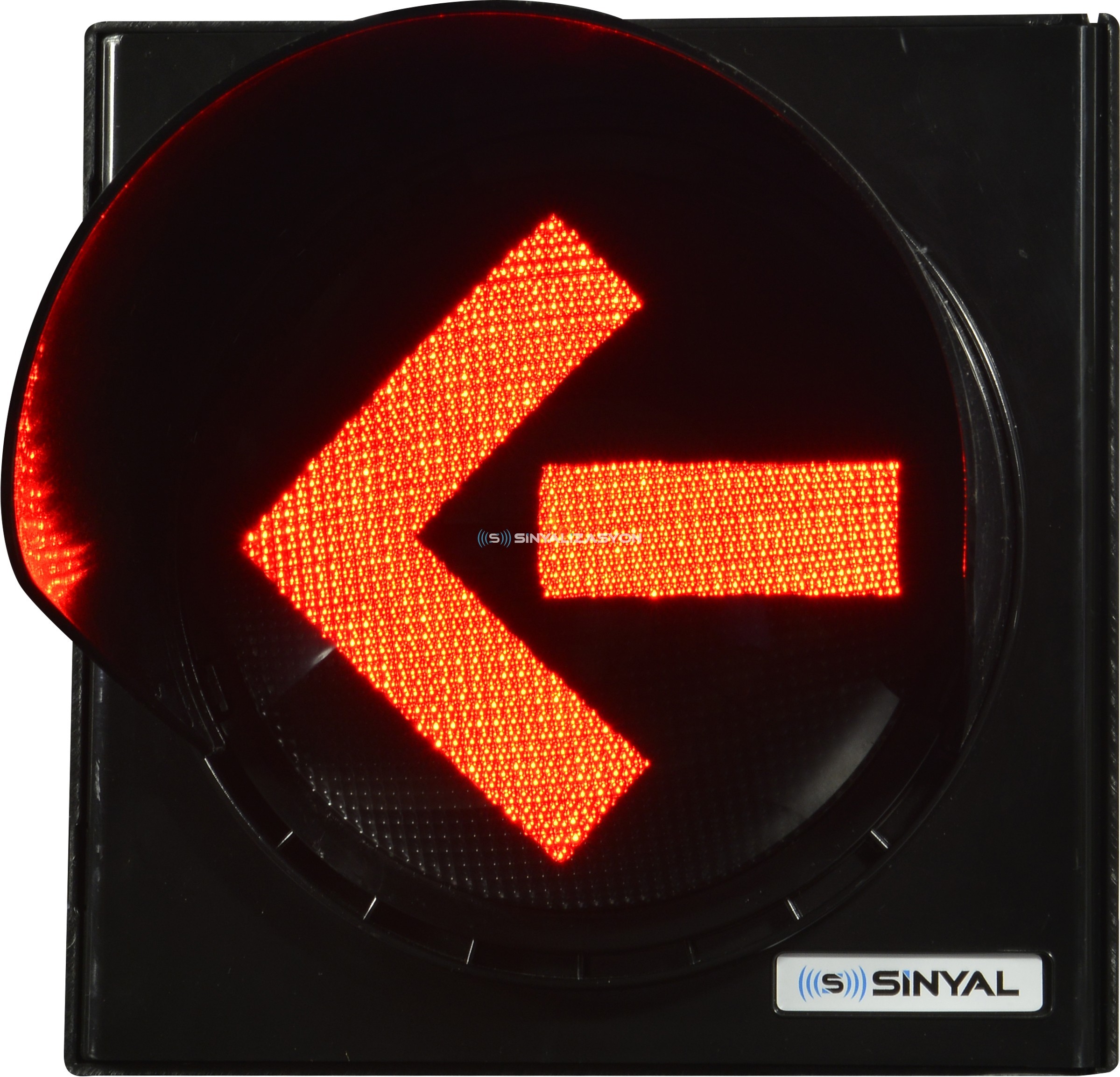

Code : Q200PLF-S
Category : Galaxy™ Power LED Signal Heads
| Product Code | GALAXY Q200PLF-S |
| Product Category | Sinyalizasyon Ürünleri |
| TECHNICIAL SPECIFICATIONS | |
| Diameter | 200mm |
| Certificate | EN 12368 |
| Housing/Mask Material Type | Polycarbonate UV. |
| Housing Color | Black-Gray/ Black |
| Impact Resistance | IR3 |
| Vibration | Class AJ3 |
| Ingress Protection | IP65 |
| Operating Temperature | -40 C to +70 C |
| Operating Voltage | 170V-265V |
| Minimum Shutdown Voltage | 80V |
| Reaction On/Off | < 50 ms |
| Circuit operation | Flash mode or adjustable blink period (optional) |
| Flasher Time | Default 500ms adjustable blink period |
| Light Power(Cd) | <1100 |
| LED Color | Red-Green-Yellow for Power LEDs |
| Power Consumption | <7 W |
| EMC | EN 50293 |
| Total Harmonic Distorsion | %10 |
| Phantom Light Class | 5 |
