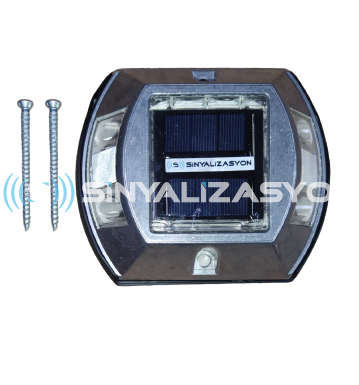

Code : S-SRS22
Category : Solar Energy Buttons
| TECHNICAL INFORMATION OF THE PRODUCT | |
| PRODUCT CODE | S-SRS22 |
| BODY MATERIAL | Aluminum AlSi9Cu3. It is produced by the injection method. |
| DIMENSIONS | 125x145x28mm |
| WEIGHT | 720gr |
| LED FEATURES | 5mm high gloss feature 8000 mcd at 3Oº angle |
| LED MOQ | 2 X 2 LED OR 2X3 LED |
| SOLAR PANEL | 3 Volt, 100 milli Amp. |
| BATTERY | 1.2 Volt 800-1200 mAmp.NiMh |
| COLOUR OPTIONS | Yellow,Red,White,Blue,Green |
| OUTER BODY MATERIAL | The outer body is steel and painted with electrostatic powder paint after phosphate. |
| INTERIOR BODY MATERIAL | PC with increased scratch and UV resistance. It is produced from the material by injection method. |
| SEALING | IP67 |
| QUALITY | Rohs is eligible |
| LED ANGLE | 30 degrees |
| LED Light intensity | 10000mcd |
| VISIBILITY | 1000 Meters |
| TECHNICAL INFORMATION OF THE SOLAR PANEL | |
| SOLAR CELL STRUCTURE | monocrystalline |
| SOLAR CELL EFFICIENCY | 17% |
| MODULE LIFE | 15 years |
| OPERATING TEMPERATURE | :-30 +70 degrees |
| PANEL POWER | 3 Volt, 100 milli Amp. |
| BATTERY DESCRIPTION | Nimh 1.2 volt 1800 milli amp |
| RUN TIME ON FULL CHARGE | 10 days (in flashing mode) |
| BATTERY LIFE | 1000 charge-discharge |
| CIRCUIT PROTECTION | The electronic circuit is protected against impact and water within the gel material. |
