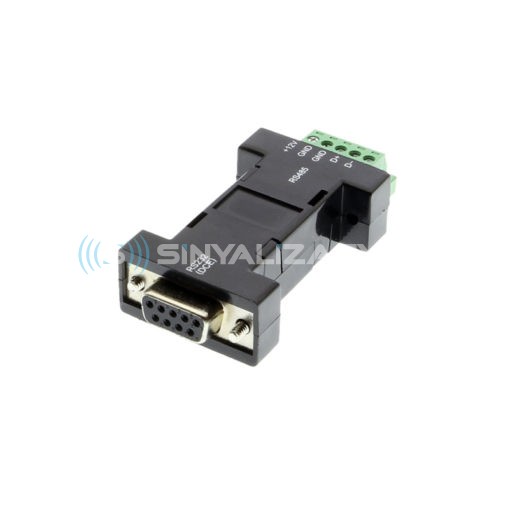

R232 to RS485 CONVERTER

R232 to RS485 CONVERTER

Code : RSC06

Category : Industrial Products



  • With RS232 Port Feed.
  • There's no need to feed any more.
  • Plug and Play. No configuration required
  • Automatic detection of data format and self-adjustment
  • No need for Flow Control.
  • Automatic detection of data direction
  • 128 Node Support
  • EIA RS-232C supports RS-485 Standards
  • RS-232 Signal: TX, RX, GND
  • RS-485 Signal: D +, D-, GND
  • Operating Mode: Asynchronism, point to point, 4 wire full-duplex
  • Data Transfer Rate: 300 ~ 115200bps
  • Detects signal speed with automatic test signal
  • Provides Continuous Communication. There is no delay in communication.
  • Data Transfer Distance: RS-485 Side: 1.2Km
  • Data Transfer Distance: RS-232 Side: Min 5Mt
  • Surge Port Protection: 1500W • ESD Port Protection: 15KV
  • RS-232 Connector DB9 Female
  • RS-485 Connector DB9 Male or DB9F to 3 Bit Terminal Block
  • Operating Temperature: -20 ° C to 60 ° C
