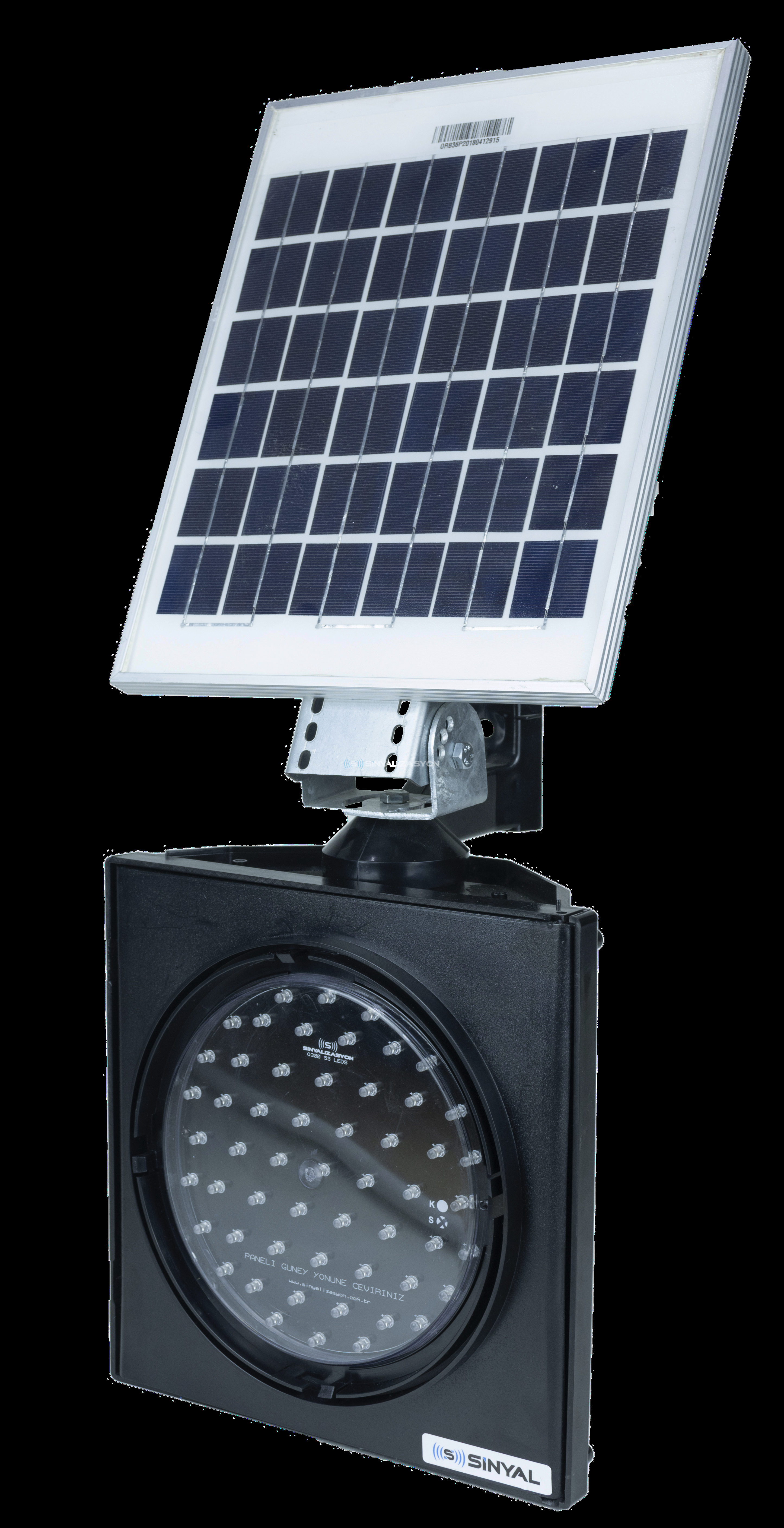

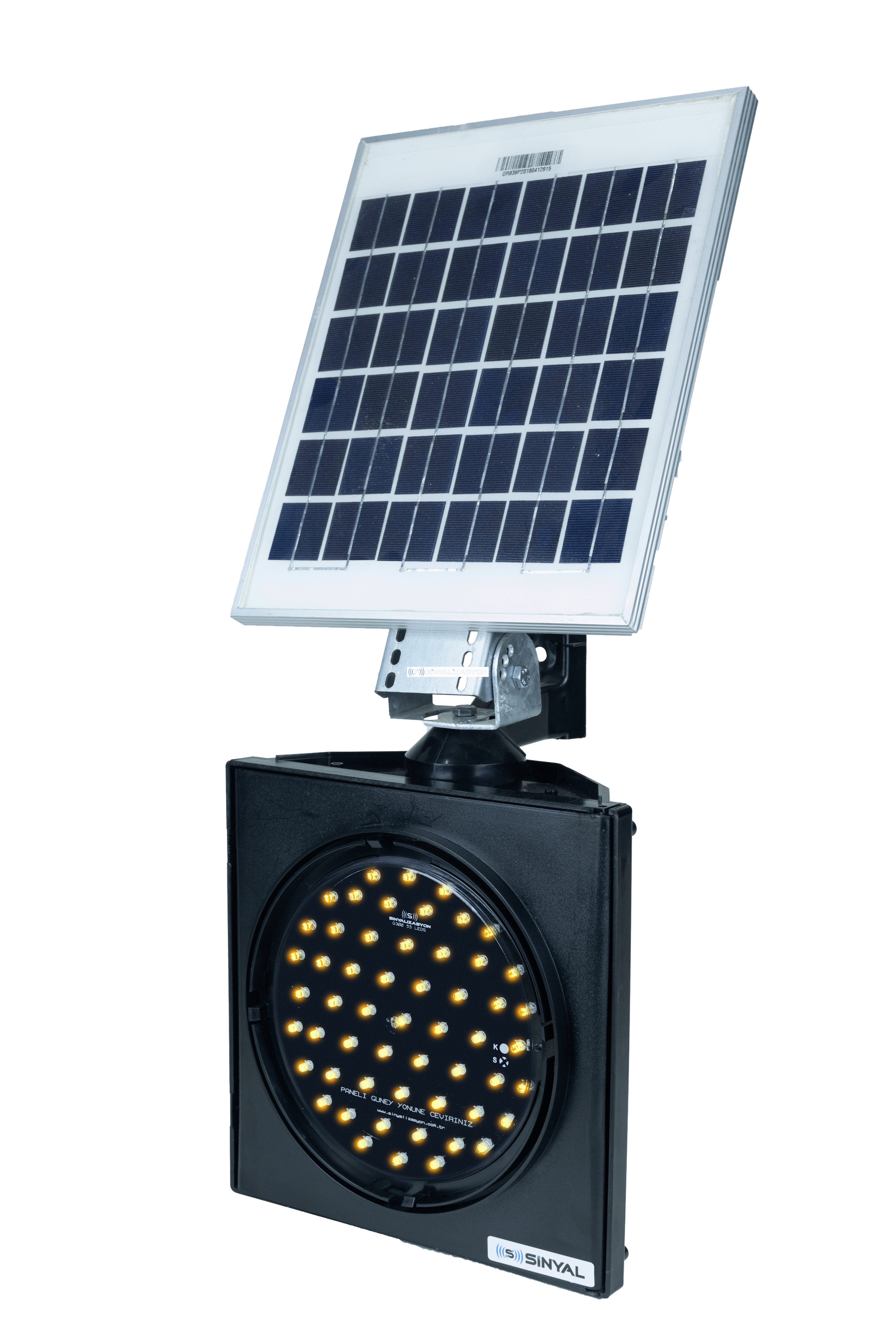

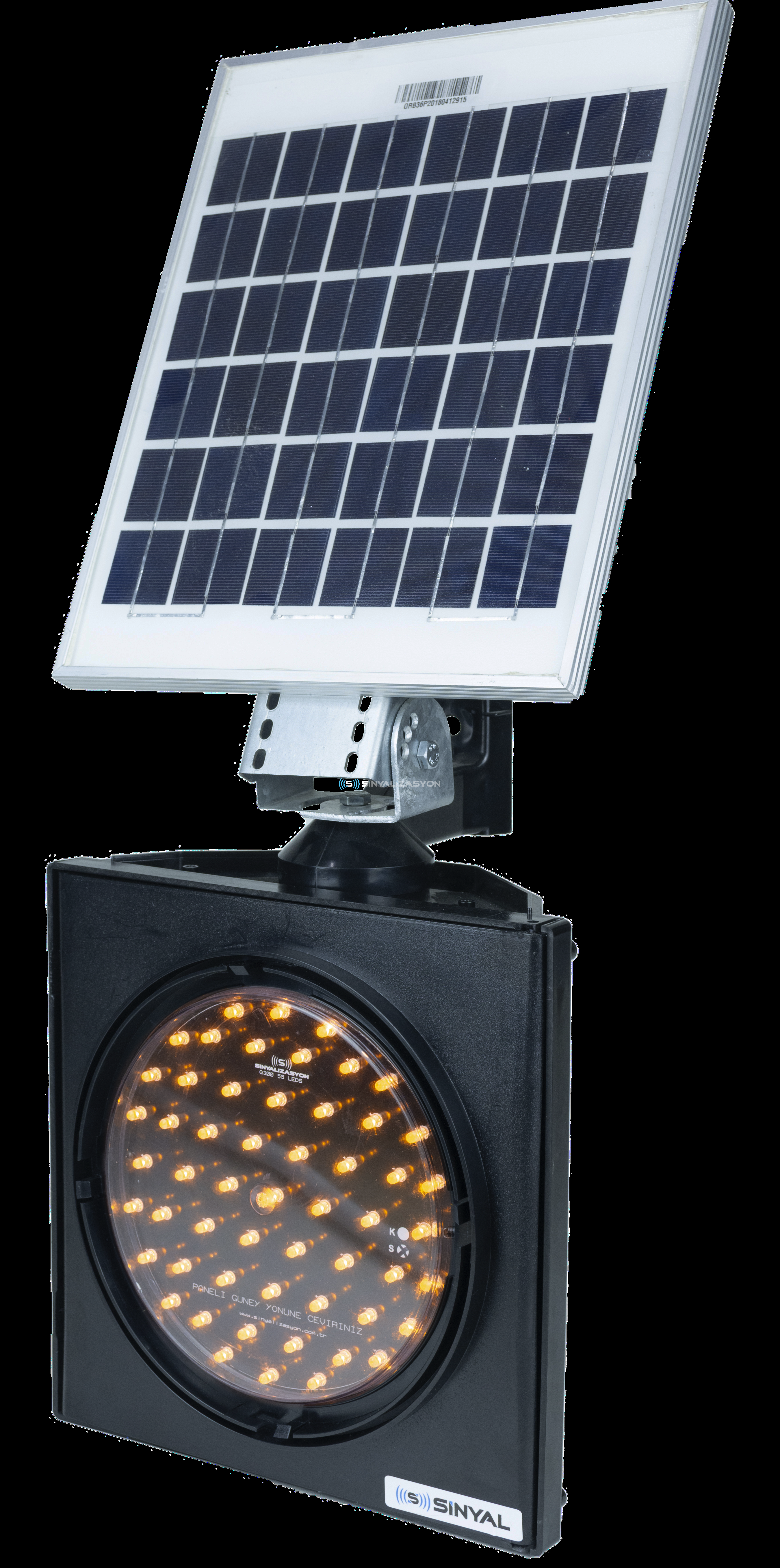

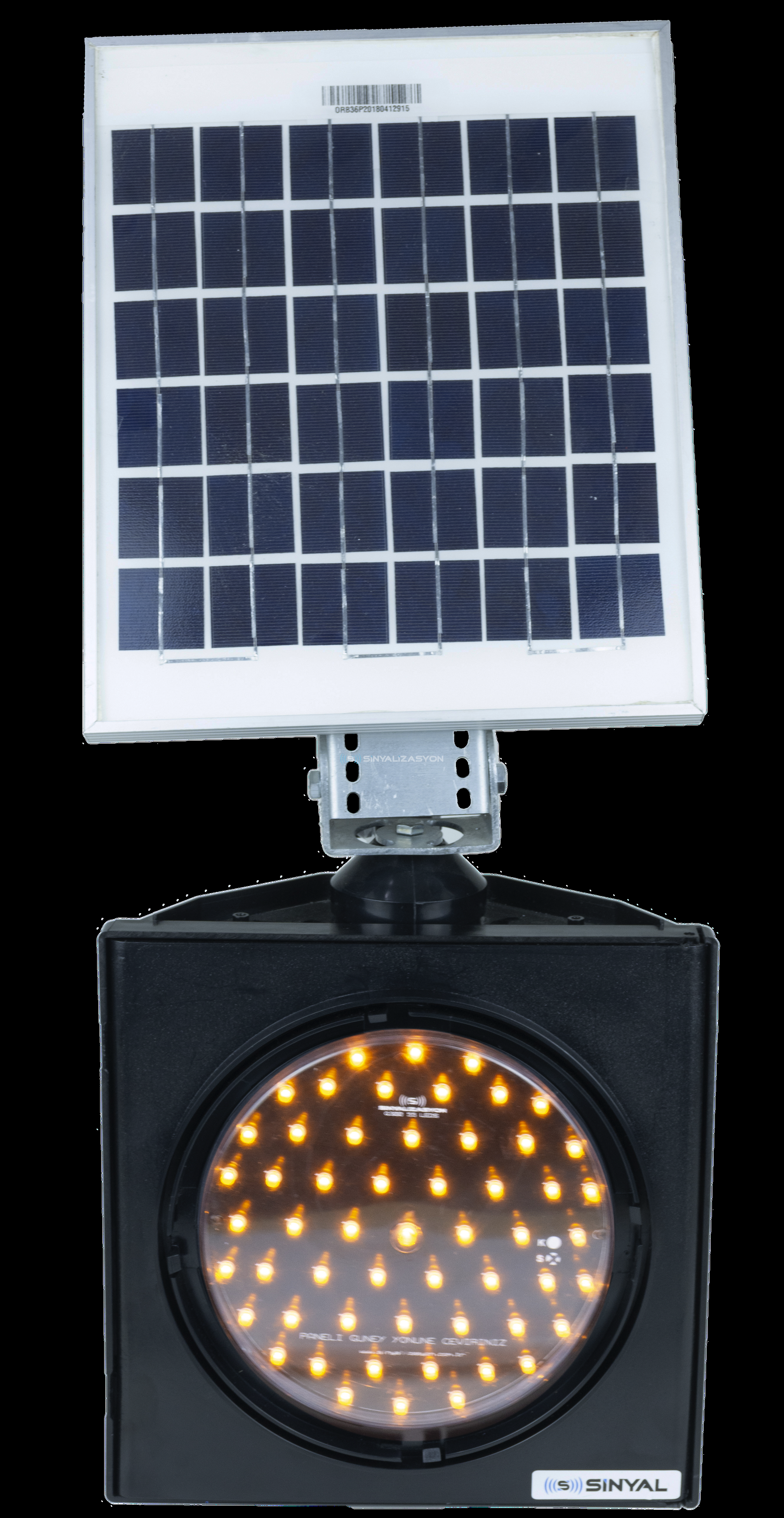

Code : Q200GEF
Category : Sarix™ LED Type Signal Heads
| Product Code | SINYAL SARIX Q200GEF |
| Product Code | Signalization Products |
| TECHNICAL SPECIFICATIONS | |
| Diameter | 200mm |
| Housing/ Mask Material Type | Polycarbonate UV. |
| Housing Color | Black-Gray-Orange |
| Impact Resistance | IR3 |
| Vibration | Class AJ3 |
| Ingress Protection | IP55 |
| Operating Temperature | -40°C to +70°C |
| Operating Voltage | 12VDC |
| LED | Red, Yellow and Greenl 5mm/10mm LEDs |
| Lumenious Intensity | >200cd |
| Solar Panel | 5W~10W |
| Battery | 6V-5Ah or 12V-7Ah |
| Operating Modes | Default 500ms adjustable blink period |
| Nigh Mode | Available |
| Protection Mode | Over chage & discharge protection |
| Charging Type | PWM-MPPT (optional) |
| Certificate | TS EN 12352 |
