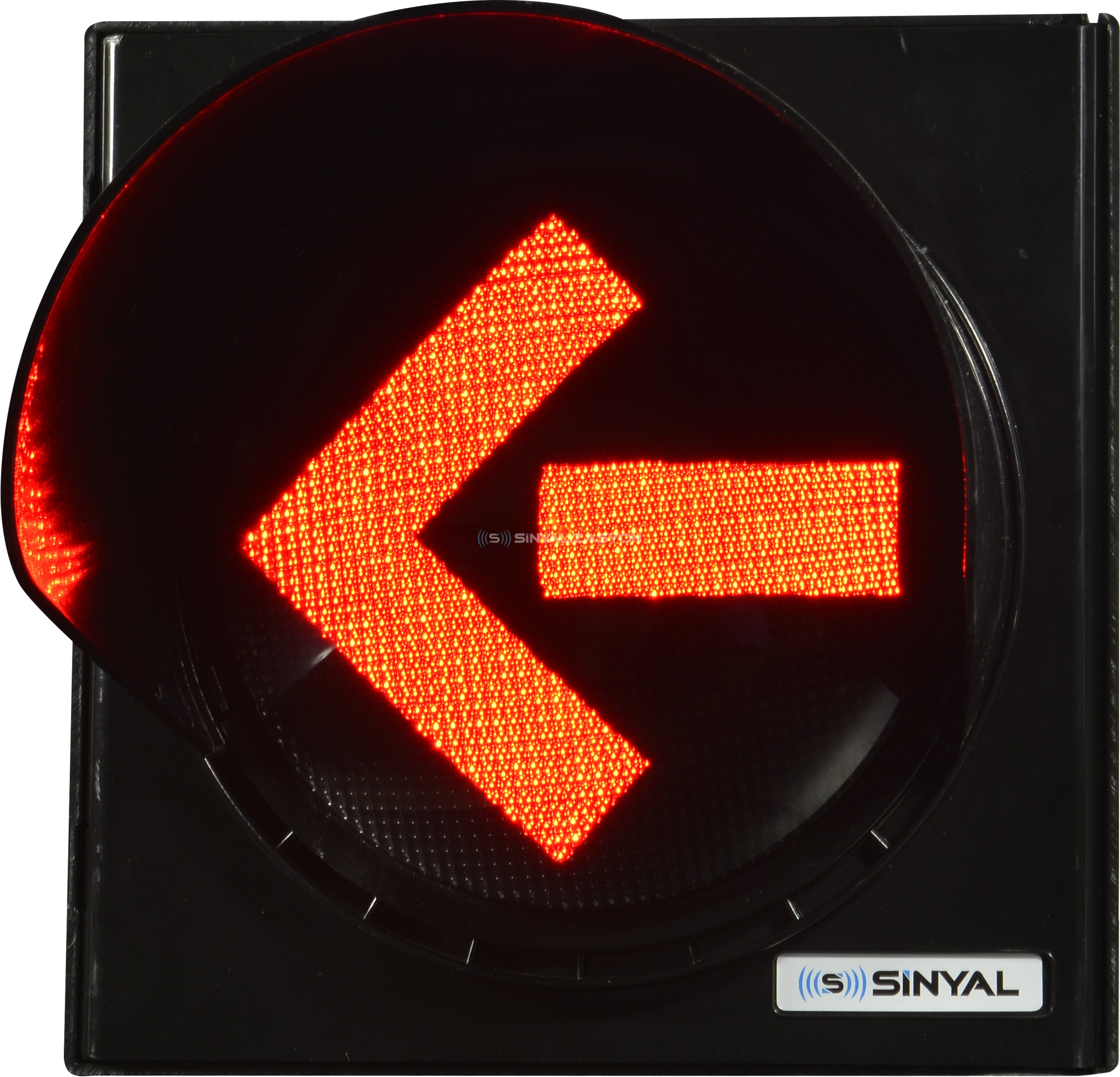

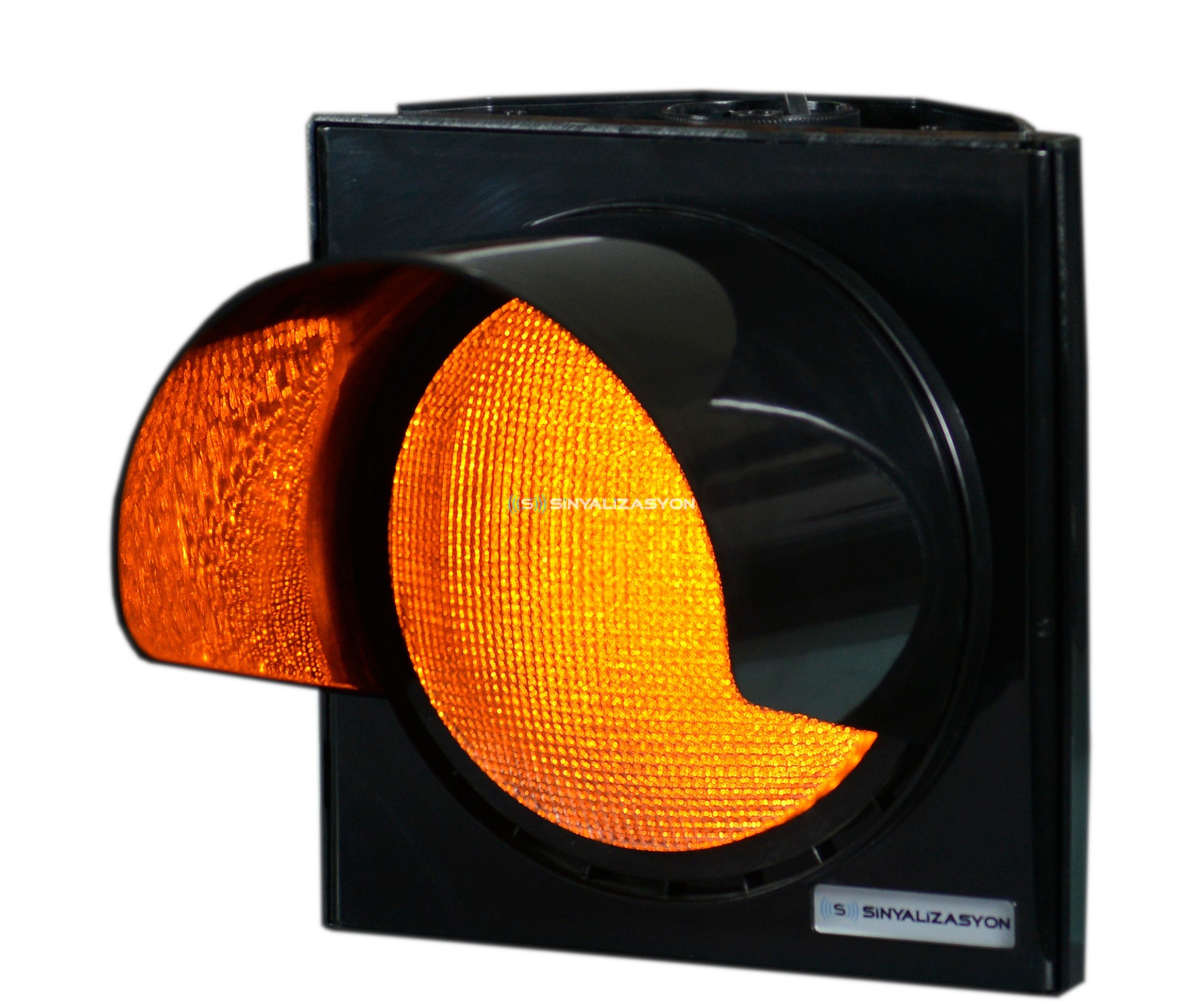

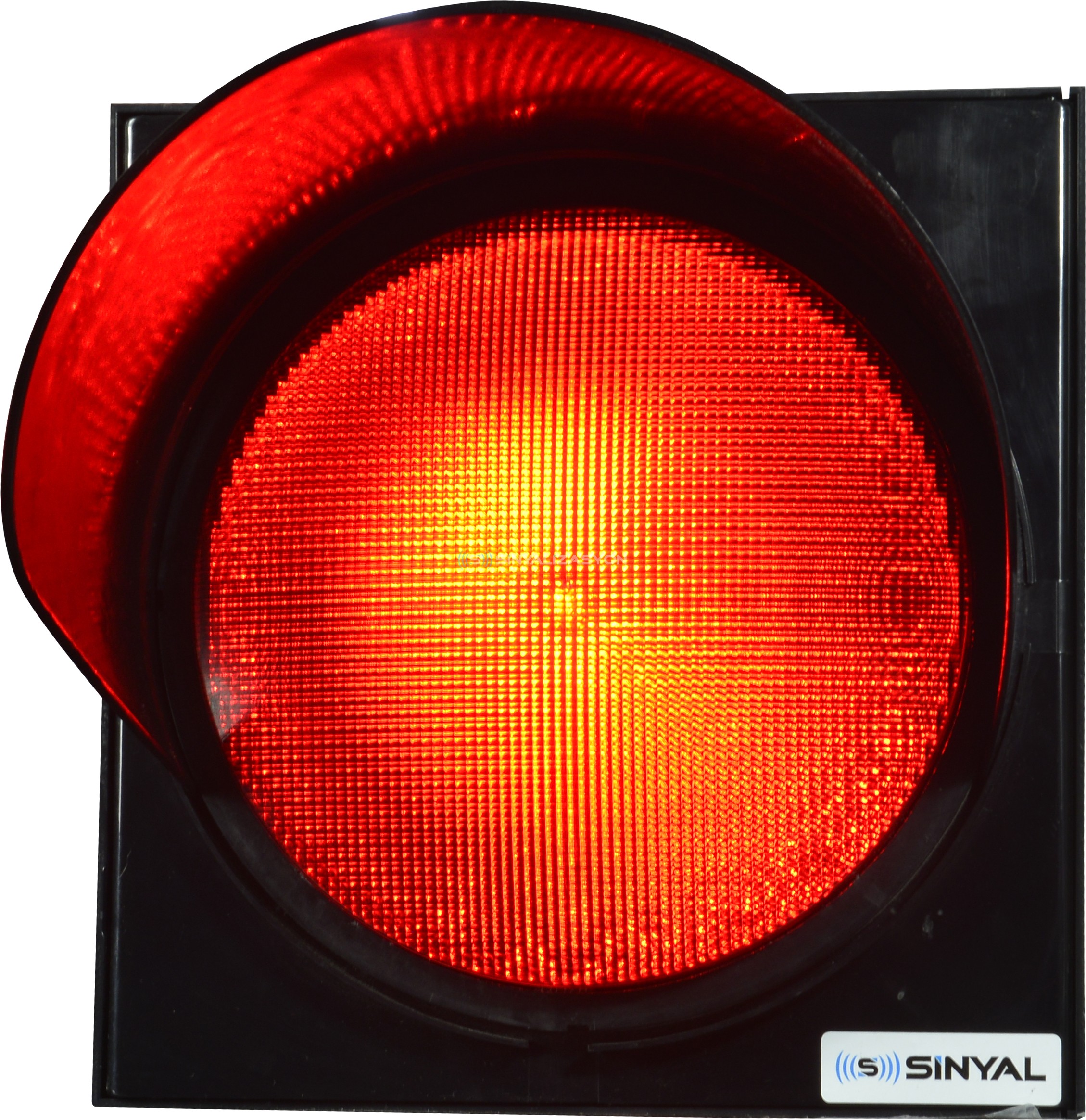

Code : Q200PLF
Category : Galaxy™ Power LED Signal Heads
| Product Code | GALAXY Q200PSL |
| Product Category | Signalization Products |
| TECHNICAL SPECIFICATION | |
| Diameter | 200mm |
| Housing/ Mask Material Type | Polycarbonate UV. |
| Housing Color | Black-Gray-Orange |
| Impact Resistance | IR3 |
| Vibration | Class AJ3 |
| Ingress Protection | IP65 |
| Operating Temperature | -40°C to +70°C |
| Operating Voltage | 170-265VAC or 12-24VDC |
| Minimum Shutdown Voltage | 80V |
| Total Harmonic Distortion | <%10 |
| Reaction Time | <50 ms |
| LED | Red, yellow, green for Power LEDs |
| Luminous Intensity (Cd) | >400cd |
| Signal Symbol | S1-S2 |
| Phantom Class | 5 |
| Power Consumption | <8W |
| EMC | EN 50293 |
| Certificate | EN 12368 |
