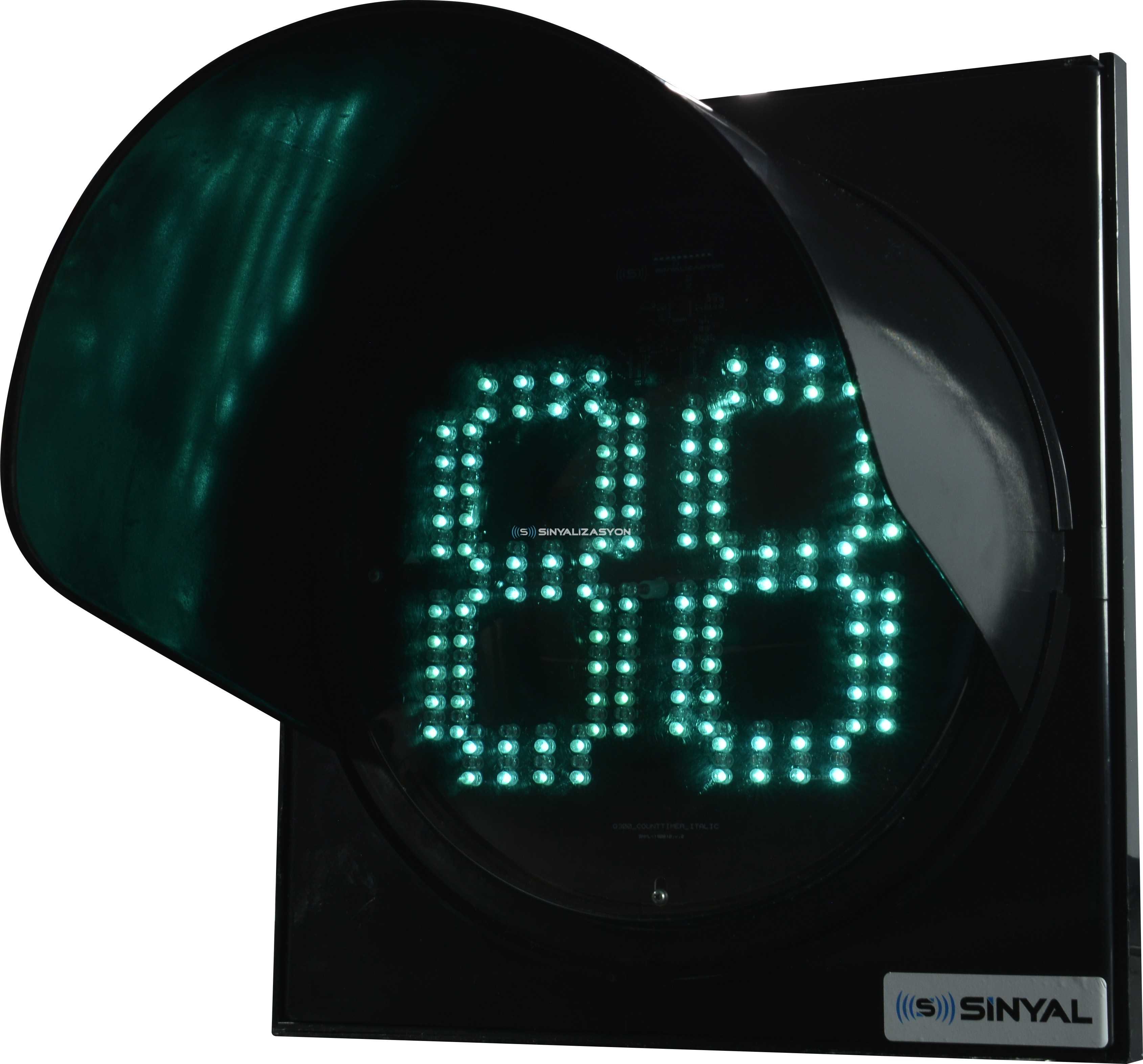

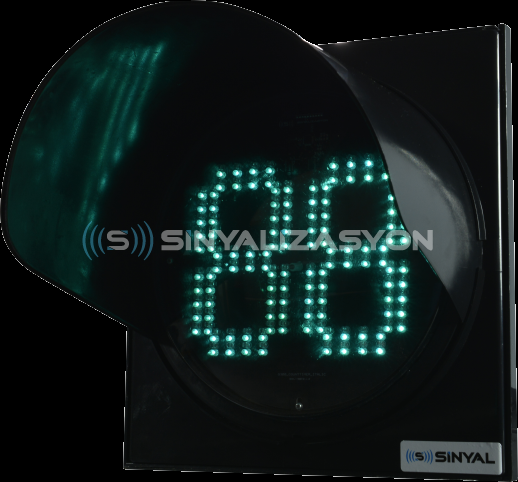

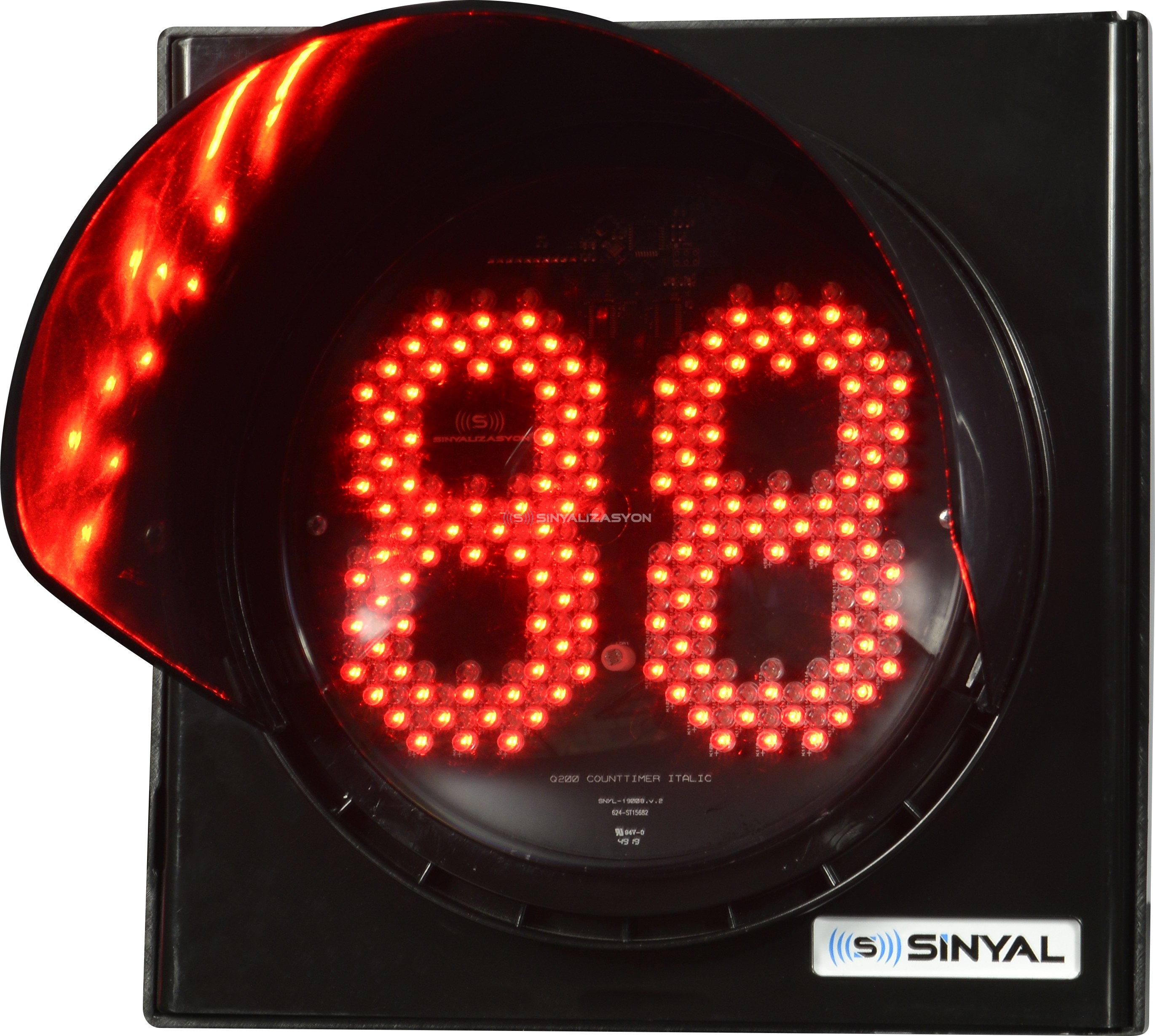

Code : Q200GS
Category : Sarix™ LED Type Signal Heads
| Product Code | SINYAL SARIX Q200GS |
| Product Category | Signalization Products |
| TECHNICAL SPECIFICATION | |
| Diameter | 200mm |
| Housing/ Mask Material Type | Polycarbonate UV. |
| Housing Color | Black-Gray-Orange |
| Impact Resistance | IR3 |
| Vibration | Class AJ3 |
| Ingress Protection | IP65 |
| Operating Temperature | -40°C to +70°C |
| Operating Voltage | 170-265VAC or 12-24VDC |
| Minimum Shutdown Voltage | 150V |
| Total Harmonic Distortion | <%10 |
| Reaction Time | <100 ms |
| LED | Red, yellow, green for 5mm LEDs |
| Luminous Intensity (Cd) | <360cd |
| Management | Microprocessor |
| Memorizing Feature | Taking the energy output time to memory and keeping the red and green time separately in memory as the time changes |
| Night Mode(LDR) | Prevents glare of drivers by reducing light power by 40% |
| Power Consumption (Watt) | <20W |
| EMC | EN 50293 |
