MOBILE TRAFFIC CONTROLLER DEVICE

Code : MTS-100GPS

Category : Intersection Controller Devices

Product Code	MSK-100GPS
Product Category	Signalization Products
TECHNICAL SPECIFICATIONS
Operating Voltage	12V/24VDC
Power Consumption	<5W for each signal head modüle
Signal Head Certification	TS EN 12368
Signal Head Housing	PolycarbonateUV.
Reaction Time	<1 ms
Communication	GPS Synchronization and RF
Communication Distance	With to GPS Synchronization, there is no distance precondition. The communication distance of the RF module used for the control of security modes is at least 1km in the open area.
Solar Panel	40W
Battery	12V 72Ah Gel Battery
Charger	10A MPPT Charger
Adjustable Telescopic Pole	2,7m
Working without solar power	With a fully charged battery at least 1 week (24hours mode)

Quick and easy installation
Turkish or English Interface (Optional other languages)
Easy programmable user friendly interface with RS485-USB
Different operating time schedule on day, night, weekly, monthly, yearly basis
Flash mode
Separately programmable for pedestrian groups upon request
Dimming of night signal lamps (dimmable)
Mobile green wave system in squencial road working areas.
Easy to carry with its wheeled structure
Foldable portable structure for telescopic pole and solar panel
Applicability in all regions with construction-maintenance-repair work and at intersections
It can be programmed to work in 1-4-way intersections with a GPS controlled signal system.
Synchronization with GPS in nanosecond resolution
Automatic switching to red flash when GPS signal is interrupted or signal quality deteriorates
Ability to work continuously for at least 1 week without getting any sun
Solar panel and MPPT charge, which provides the energy to run the system for at least 4 days on a sunny and cloudless day
Gel Battery Technology, fixed battery and lock system
Solar panel can be adjusted in any direction and any angle.
Embedded 10A MPPT charging module

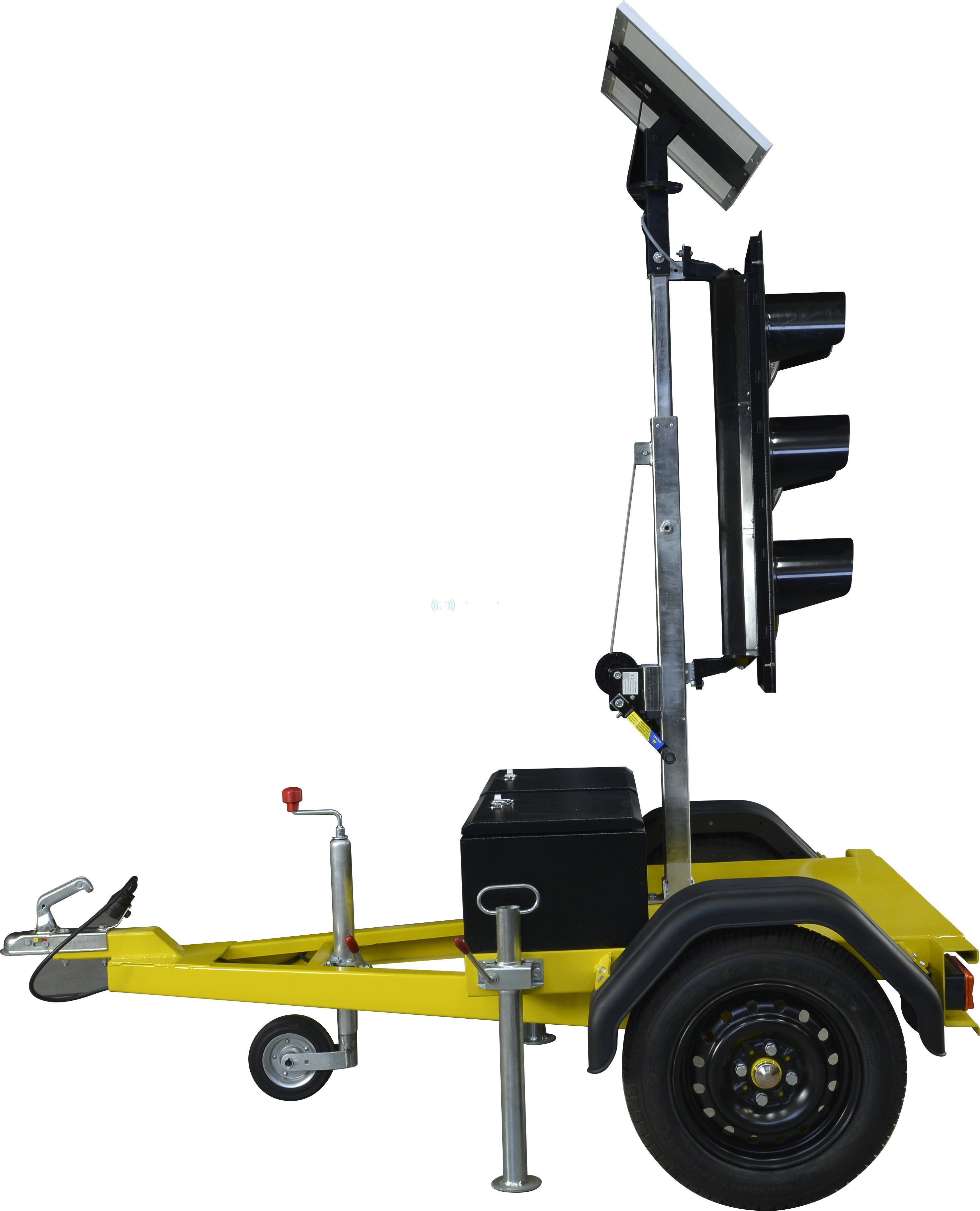

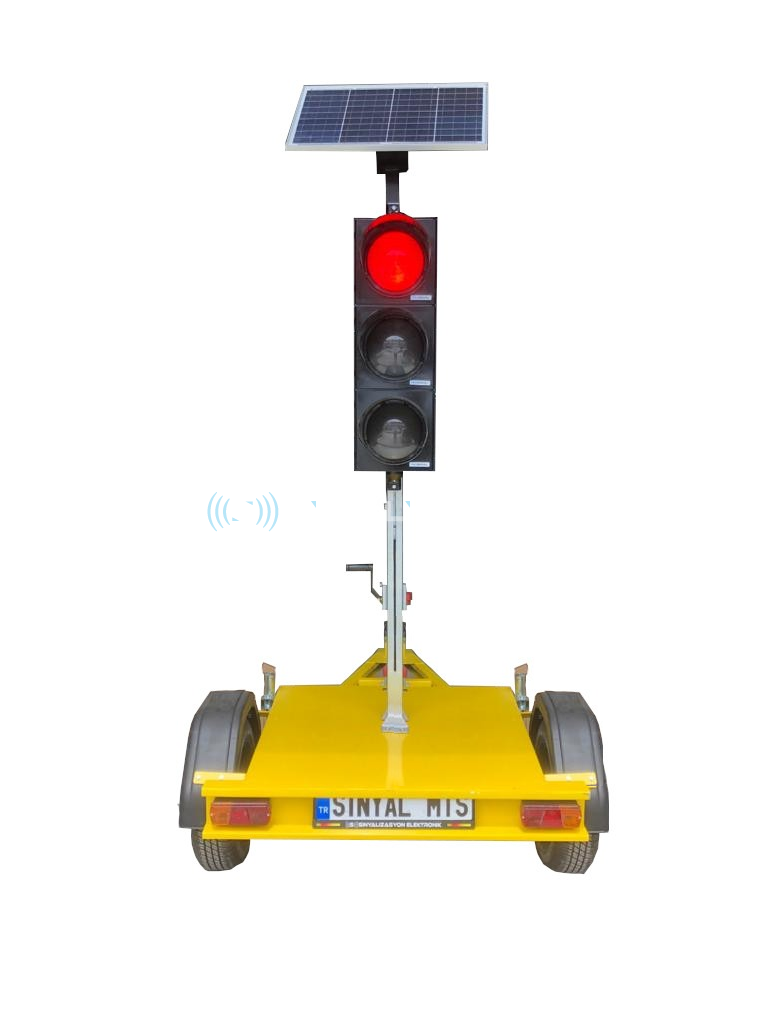

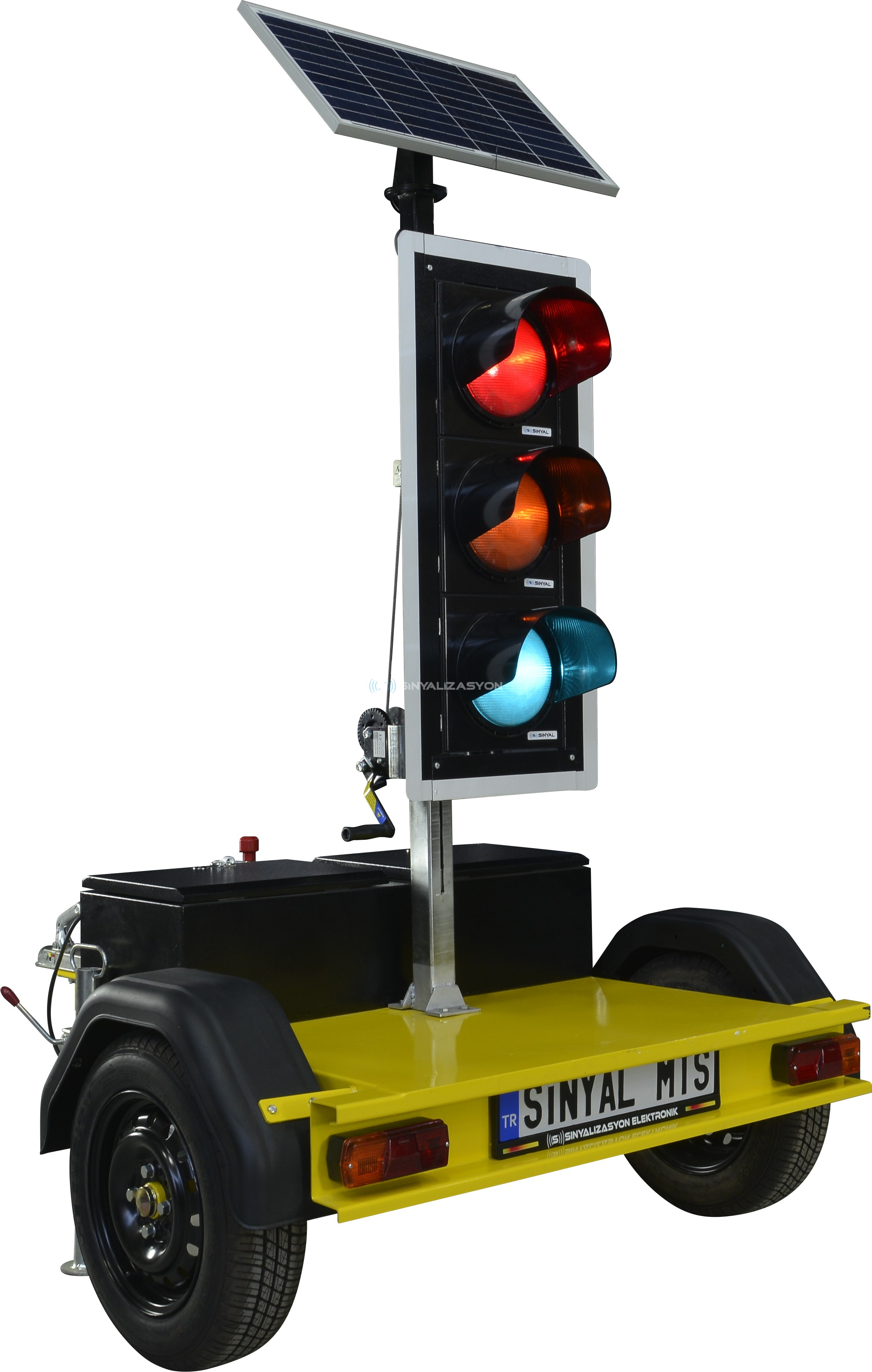

MSK-100GPS Solar MobileTraffic Controller
