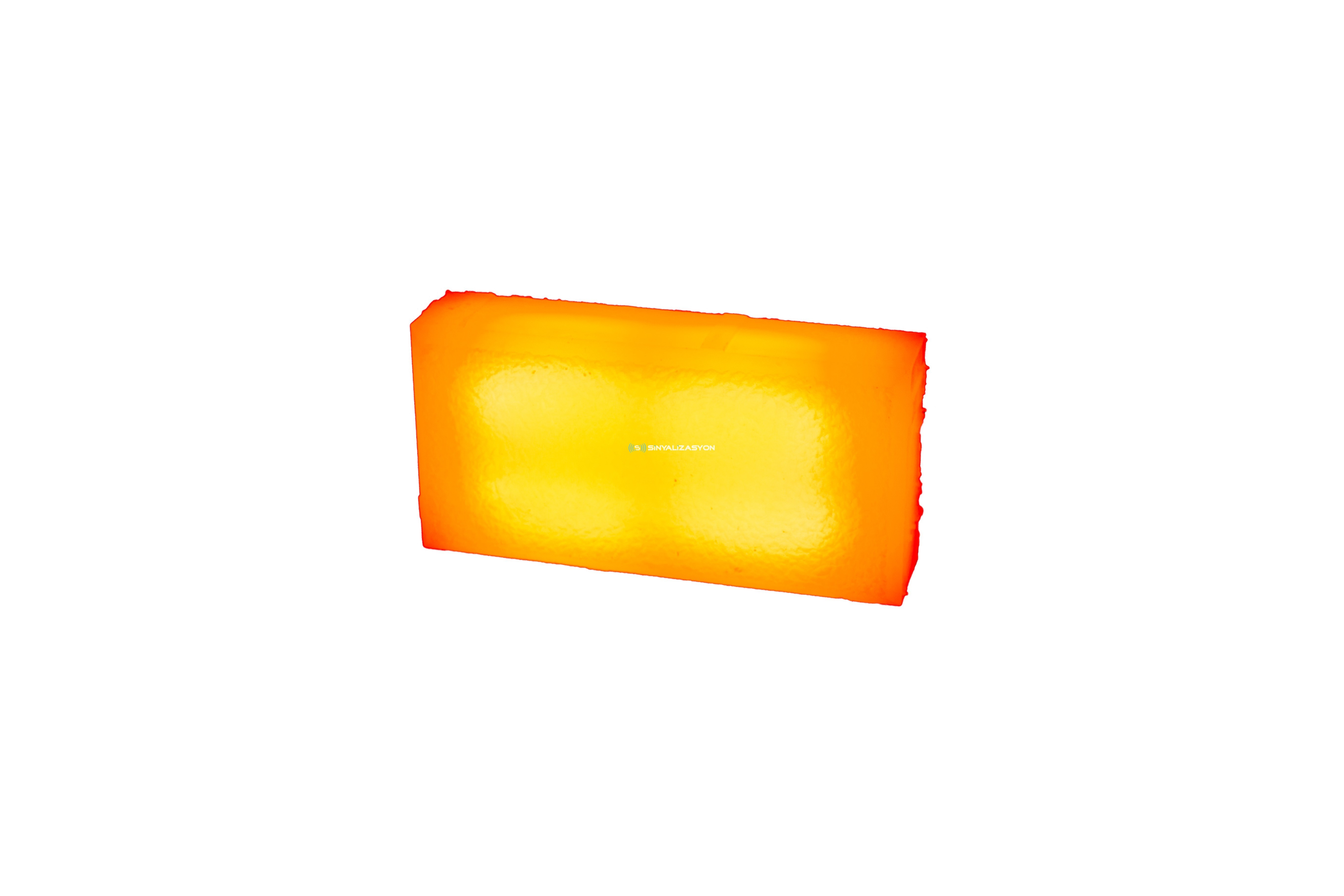

TILE STONE WITH LEDS 20x20 CM

TILE STONE WITH LEDS 20x20 CM

Code : IKT20

Category : Industrial Products



Scope of application;
  • In road and square structuring,
  • In architectural decorative designs,
  • In building exterior lighting,
  • In their guidance within industrial facilities,
  • On directional and warning signs in dark squares and roads,

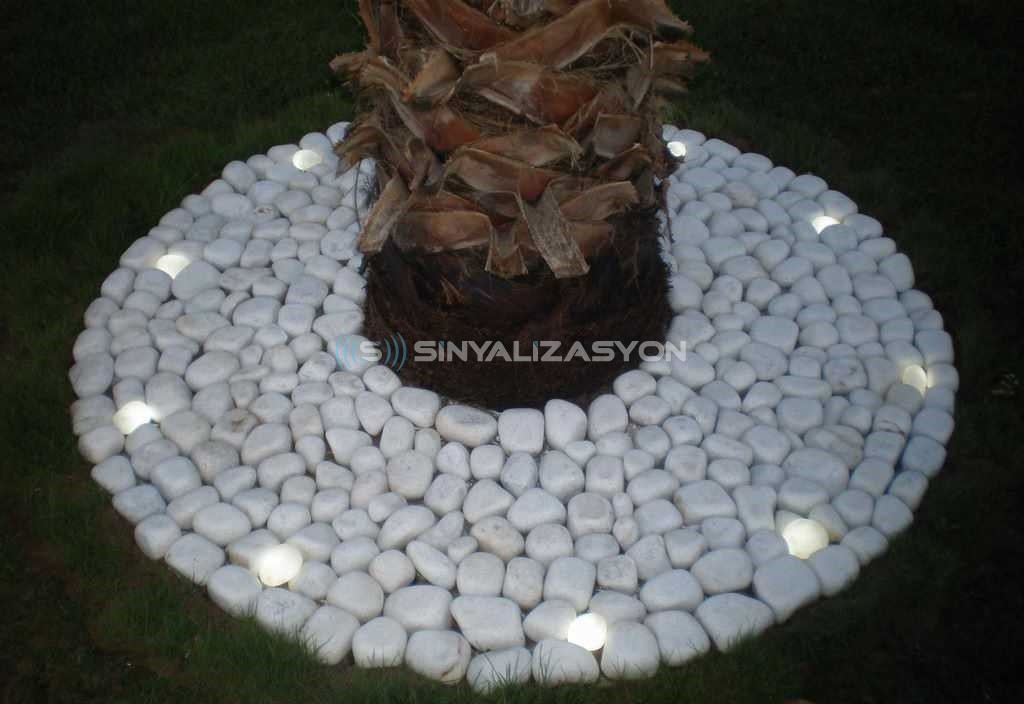

  • In landscaping applications in parks and gardens,

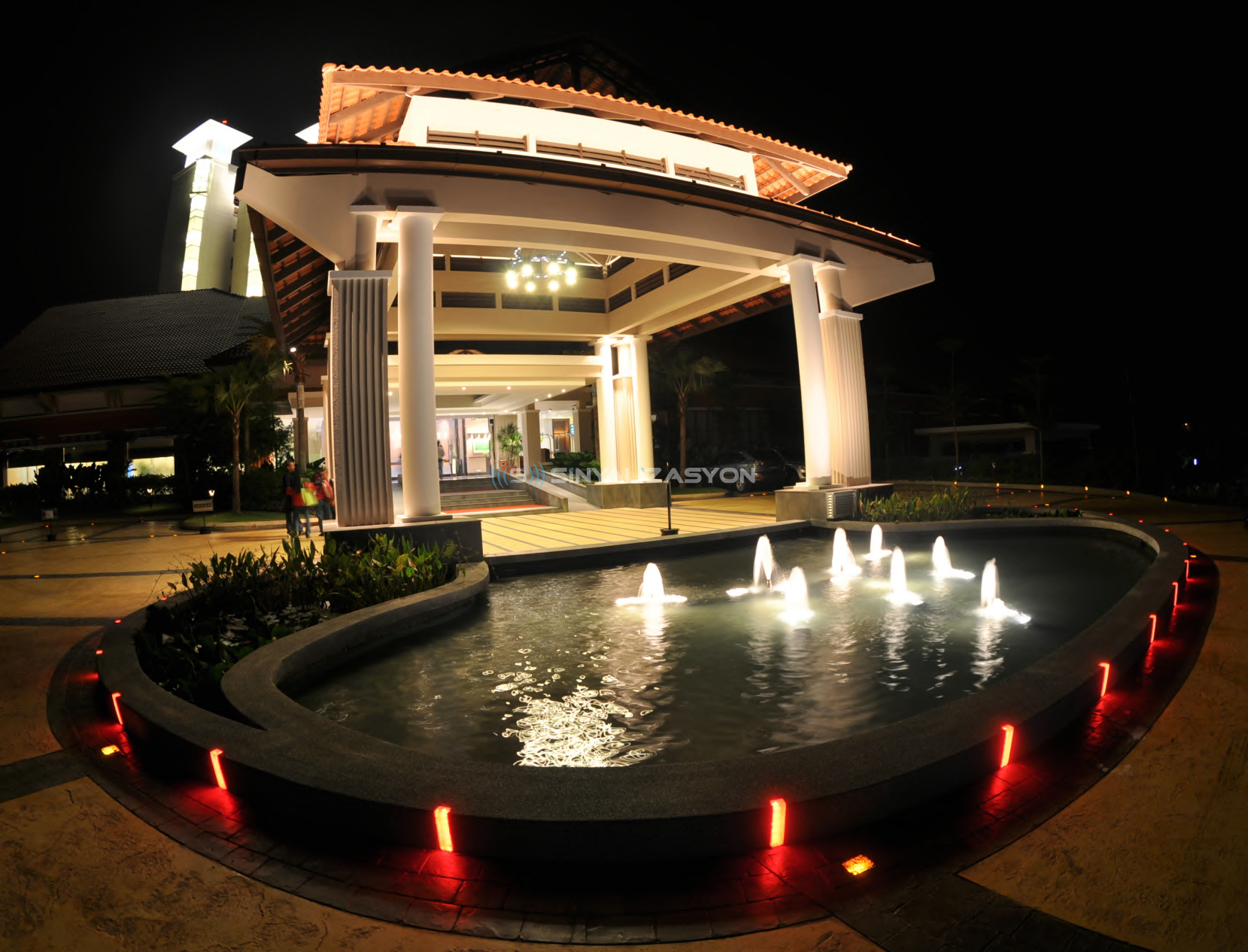

  • In floor and wall applications in pools,
  • At highway intersections, tunnels and curbs,
  • In applications used for advertising and promotional purposes,
  • In all kinds of illuminated logo applications

Product characteristic;
  • Suitability for walking and vehicle passage,
  • Low energy consumption, maintenance-free LED lighting,
  • Single color or RGB option,
  • SMD technology LED on PCB specially designed for our products,
  • 70% lumen protection up to 30,000 hours,
  • Anti-static material,
  • Working temperature (-) 40, (+) 115,
  • Resistance to tonnage and external impacts after installation on the ground,
  • Record compatible with cable duct,
  • Optionally manufacturing in special sizes,
  • Optionally colored surface manufacturing,
  • Marble, travertine, ceramic, wood etc. Can be used on floors,
  • Adapting to the ground on which it is applied,
  • Unlike its metal counterparts, it does not cause rust that will occur over time,
  • UV Resistance,
  • Acetone, thinner, cleaning chemicals and sandpaper can be used for surface cleaning.



Operating voltage DC 12V
Working Environment temperature -40°C / +115°C
Protection Class IP 68
Material Polymer
Surface Rough
Pressure load between stone 80 tons
Product Lifespan 20 years product
LED Lifespan 50,000 hours
Impact Resistance 8KJ/m2
Bending Strength 90 MPa
Fracture Strength 2.5%
Water Absorption 0.2g/cm3 53479

junction box HRN e - junction box
Cable Nyy Flex
Transformer DC 12 V Constant Voltage
Insulation Materials Silicon, Protoline
Connection Type Parallel
Adding to the Main Line Soldering (optional connector)
Product Cable Output Single color 25 cm. (2x0.50 mm2 NYY Flex)
Product Cable Output RGB 25 cm. (4x0.75 mm2 NYY Flex)


Colors Power (W) Current (A) Luminous Flux (LM)
White 0.24 0.02 21
Daylight 0.24 0.02 15
Red 0.48 0.04 16.8
Green 0.24 0.02 15
Blue 0.24 0.02 4.2
Orange 0.48 0.04 13.2
RGB 0.72 0.06 Red 3.5 Green 5 Blue 1.88
