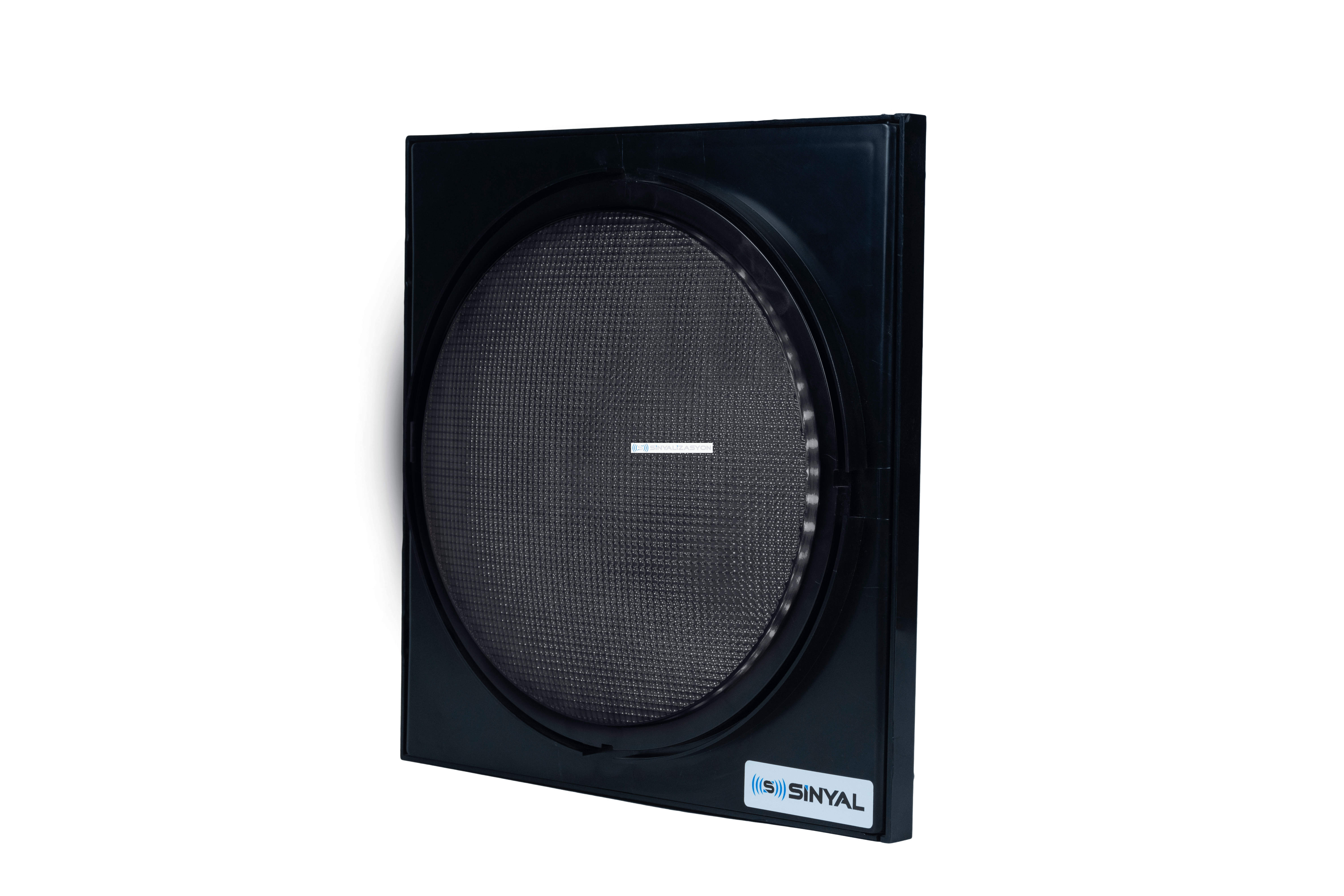

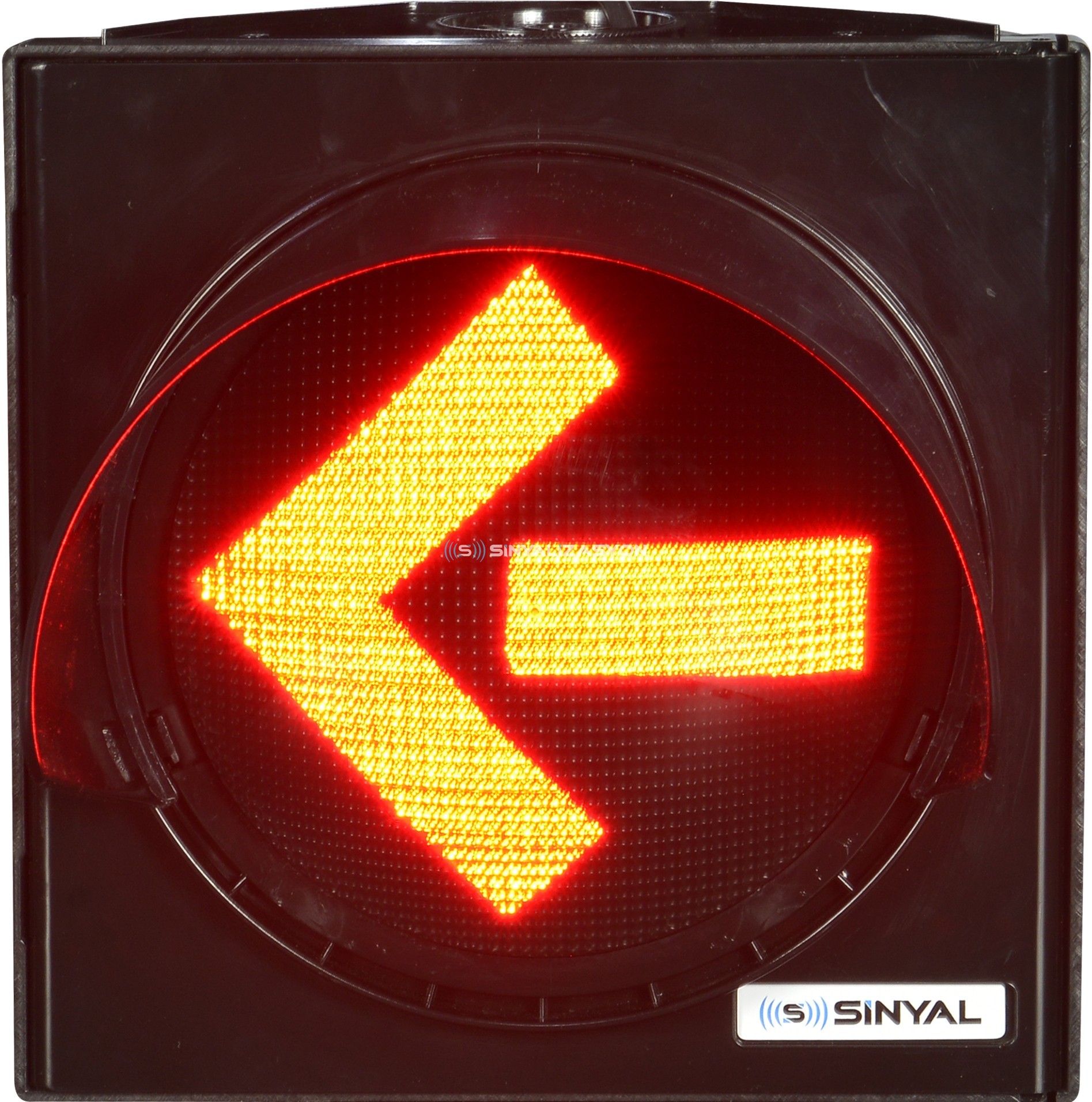

Code : Q300PLF-S
Category : Galaxy™ Power LED Signal Heads
| Product Code | GALAXY Q300PLF-S |
| Product Category | Signalization Products |
| TECHNICAL SPECIFICATION | |
| Diameter | 300mm |
| Certificate | En 12368 |
| Housing/ Mask Material Type | Polycarbonate UV. |
| Housing Body Color | Black-Gray-Orange |
| Impact Resistance | IR3 |
| Vibration | Class AJ3 |
| Ingress Protection | IP65 |
| Operating Temperature | -40 C to +70 C |
| Operating Voltage | 170V-265V |
| Minimum Shutdown Voltage | 80V |
| Reaction on / off | < 50 ms |
| Circuit Operating | Flash or adjustable blink period |
| Flasher Time | Default 500ms adjustable blink period |
| Light Power (Cd) | Min 400 – Max1100 |
| Signal Symbol | S1 |
| Power Consumption | <7 W |
| EMC | EN 50293 |
| Total Harmonic Distorsion | %10 |
| Phantom Light Class | 5 |
