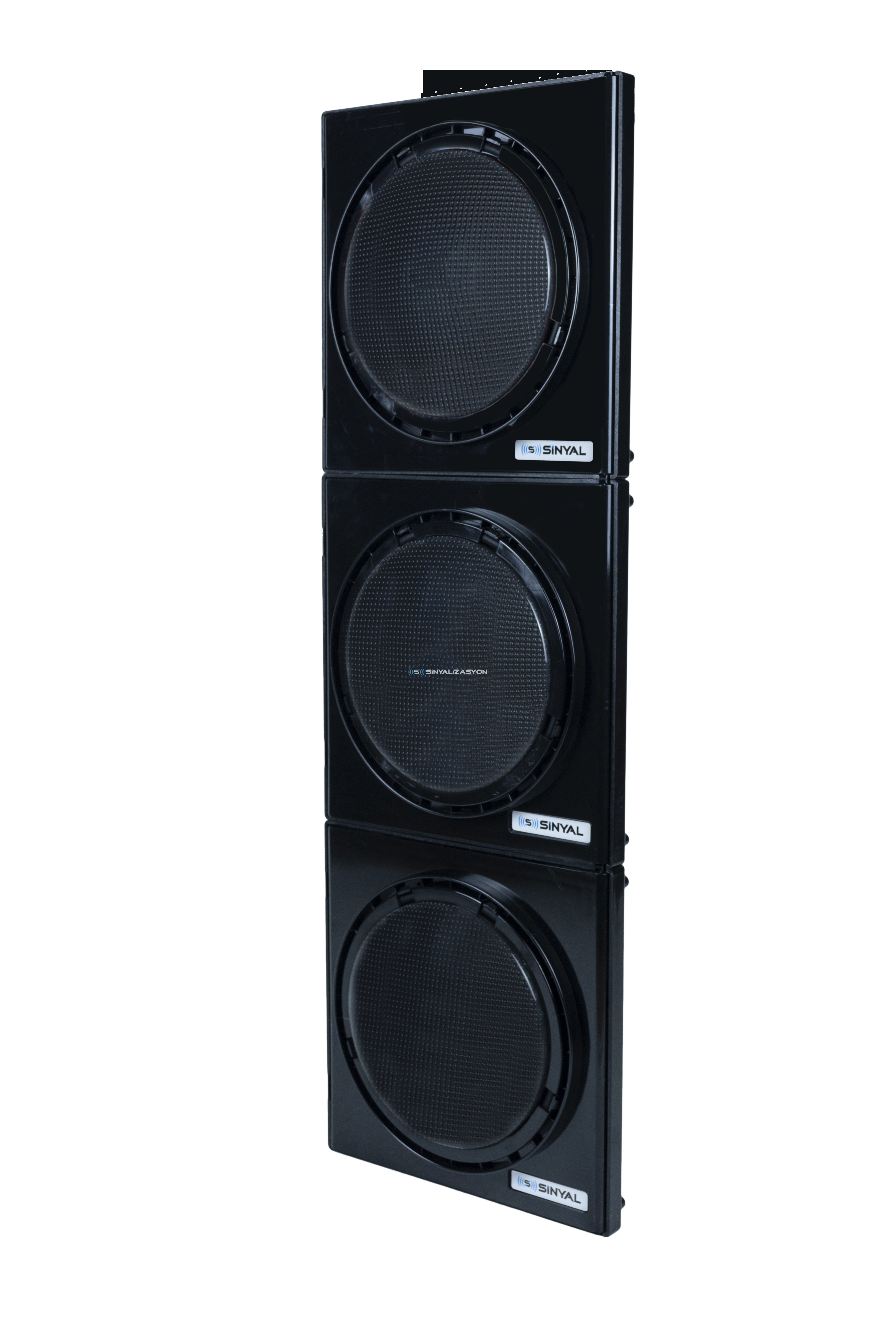

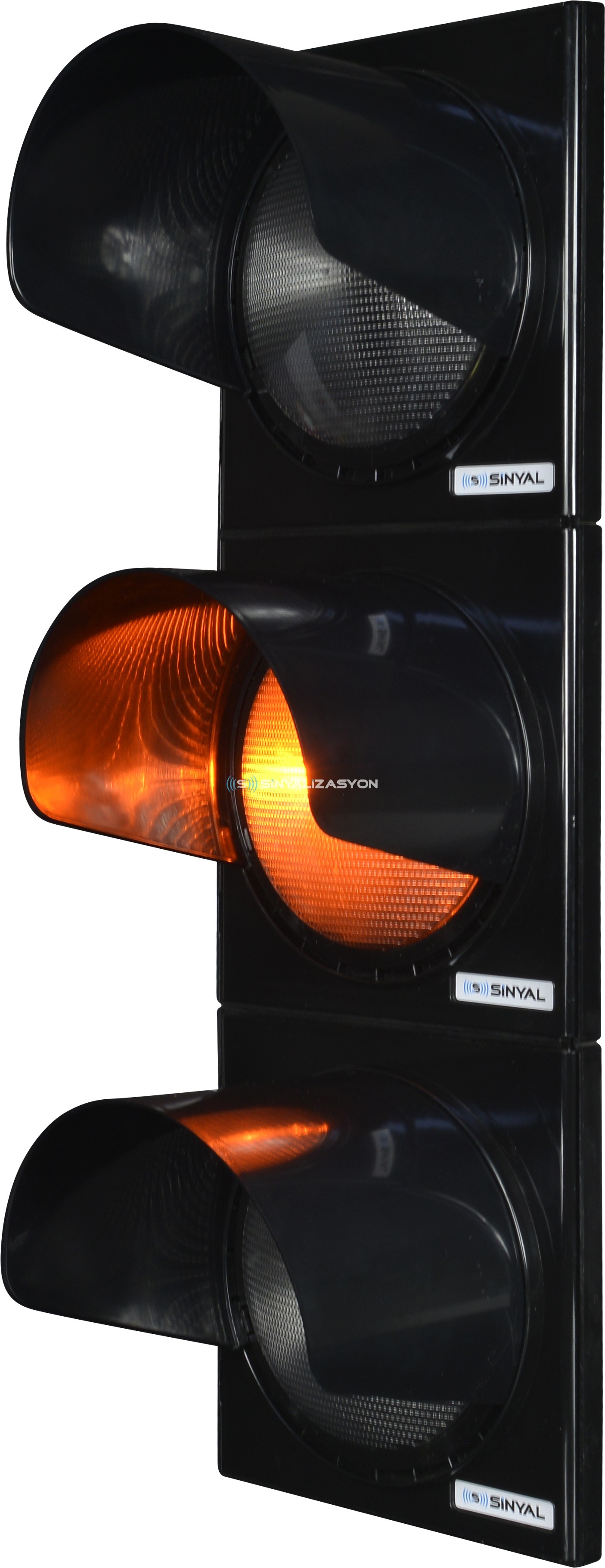

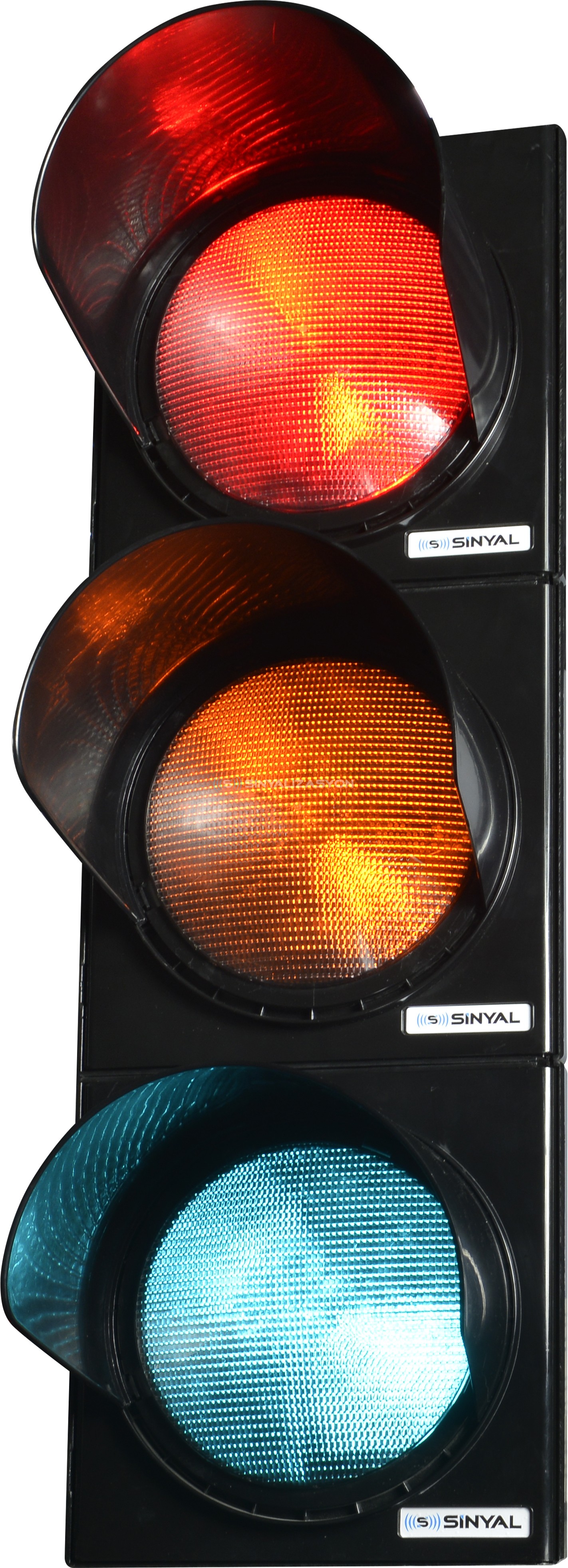

Code : Q200 GXPOL-S
Category : Galaxy™ Power LED Signal Heads
| Product Code | GALAXY Q200 GXPOL-S |
| Product Category | Signalization Products |
| TECHNICAL SPECIFICATION | |
| Glass Diameter | 200mm |
| Housing/ Mask Material Type | Polycarbonate UV. |
| Housing Color | Black-Gray/Black
|
| Impact Resistance | IR3 |
| Vibration | Class AJ3 |
| Ingress Protection | IP65 |
| Operating Temperature | -40°C to +70°C |
| Operating Voltage | 170V-265V |
| Minimum Shutdown Voltage | 80V |
| Reaction on / off | < 50 ms |
| Light Power (Cd) | Min 400 – Max 1100 |
| Led | Red-Yellow-Green with Power LEDs |
| Power Consumption (Watt) | <7 W |
| EMC | EN 50293 |
| Power Factor(PF) | Up to 0.9 |
| Certificate | EN 12368 |
| Performance Levels Light Distribution | B2/2d |
| Total Harmonic Distorsion | <%10 |
| Phantom Class | 5 |
