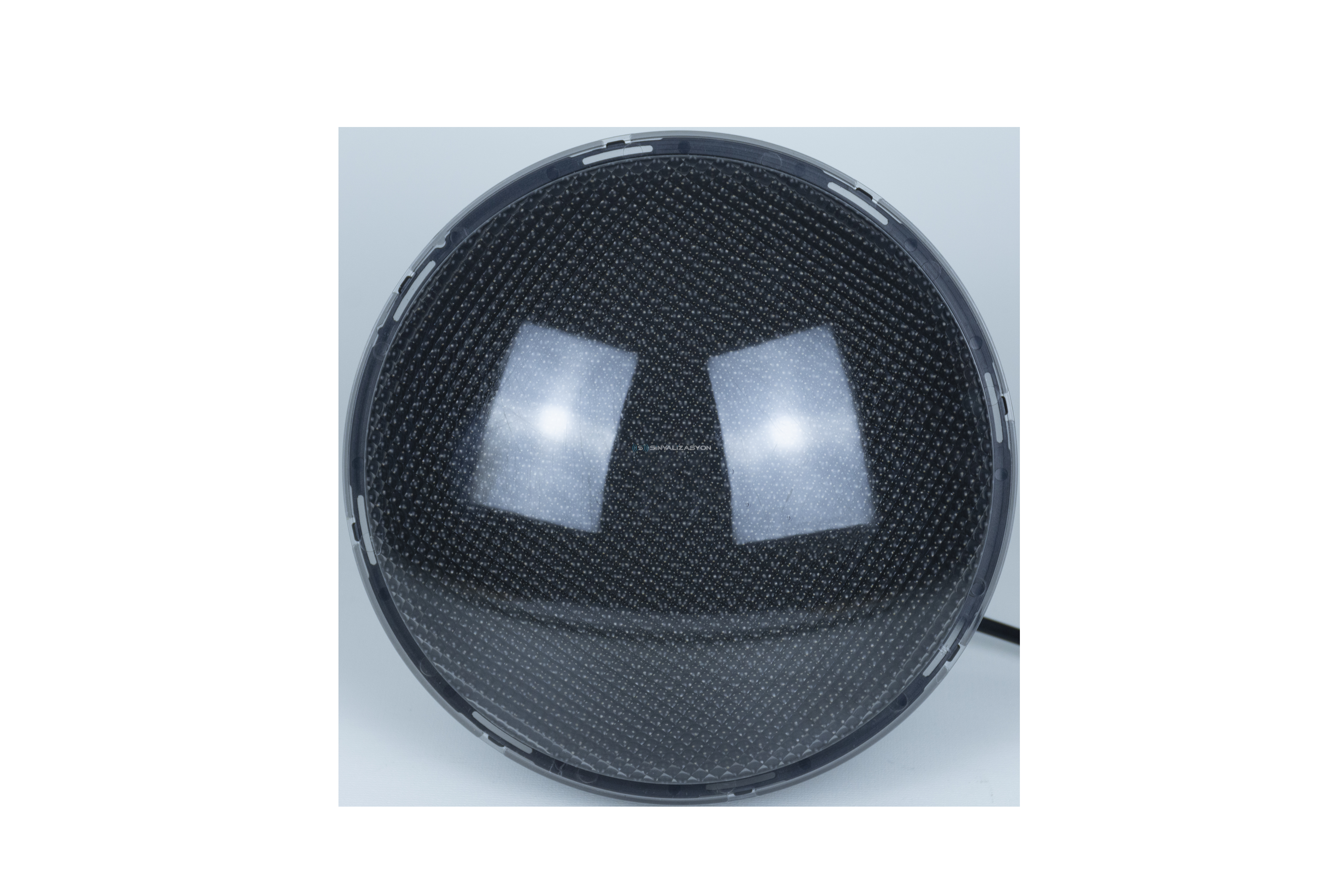

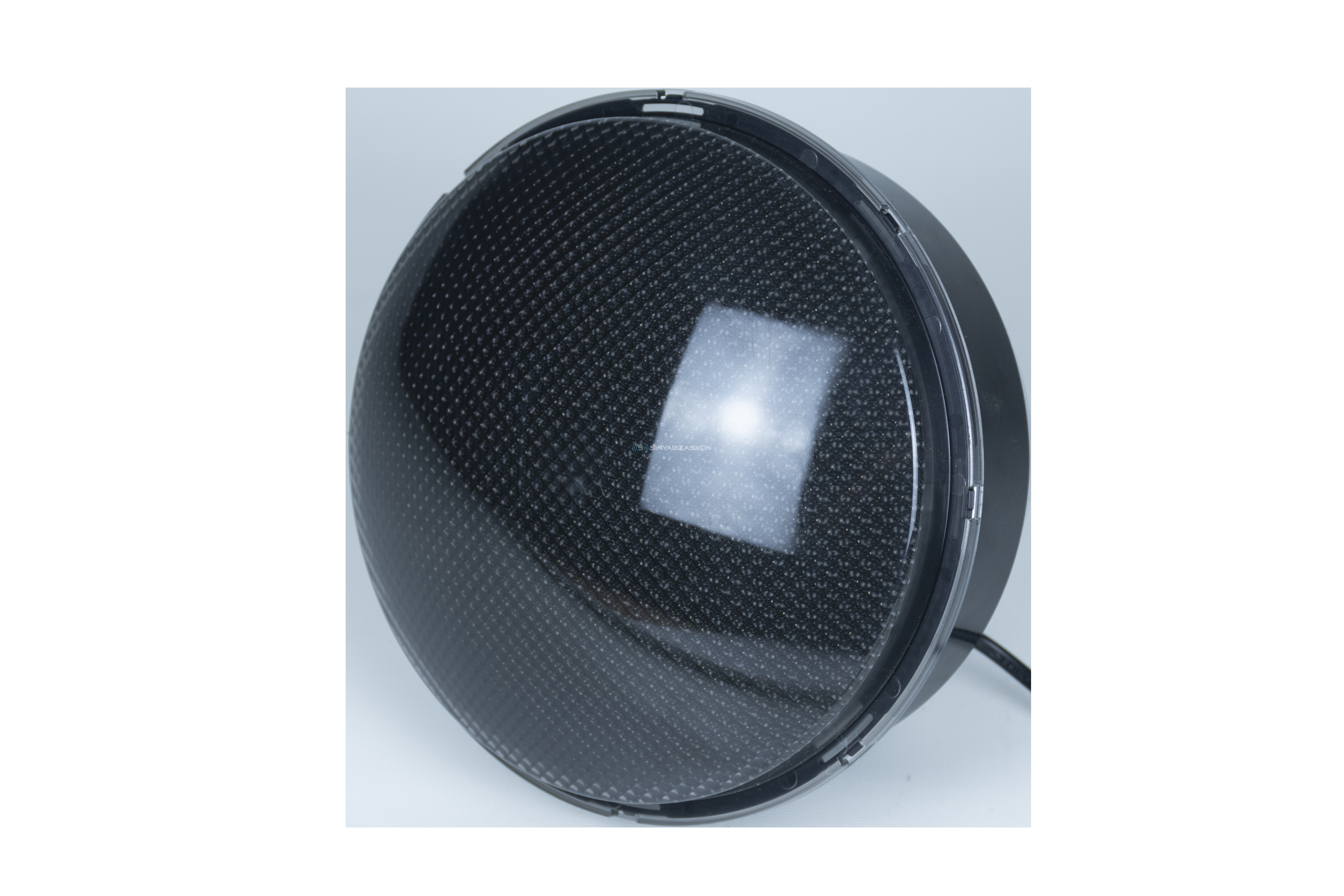

Code : Q200PLM-G / Q300PLM-G
Category : Galaxy™ Power LED Signal Heads
| Product Code | Q200PLM-G / Q300PLM-G | |
| Product Category | Signalization Products | |
| TECHNICAL SPECIFICATIONS | ||
| Diameter | 200mm | 300 mm |
| Material of lens/housing | UV-stabilized polycarbonate | UV-stabilized polycarbonate |
| Operating Voltage | 220VAC, 110VAC, 42VAC, 12/24VDC | 220VAC, 110VAC, 42VAC, 12/24VDC |
| Certificate | EN12368 | EN12368 |
| Optical performance | A2/1, W | A3/1, N |
| Phantom Class | Class 5 | Class 5 |
| Operating Voltage bright mode/dimmed mode |
(+10%; - 15%) |
(+10%; - 15%) |
| Power consumption: typically bright mode / dimmed |
<8W | <8W |
| Luminous intensity | red > 200 cd amber > 200 cd green > 200 cd |
red > 400 cd amber > 400 cd green > 400 cd |
| Colour | red 613.5 - 631 nm amber 585 - 597 nm green 498.5-508 nm (white 5000 – 7000 K |
red 613.5 - 631 nm amber 585 - 597 nm green 498.5-508 nm (white 5000 – 7000 K |
| Uniformity of Luminance | better than 1 : 2.5 | better than 1 : 2.5 |
| LED type | High Flux | High Flux |
| Power Factor | > 0,9 | > 0,9 |
| Ambient temperature | -40°C to +70°C | -40°C to +70°C |
| Ingress protection | IP 65 | IP 65 |
| Impact resistance | Class IR3 | Class IR3 |
| EMC | EN 50293 | EN 50293 |
