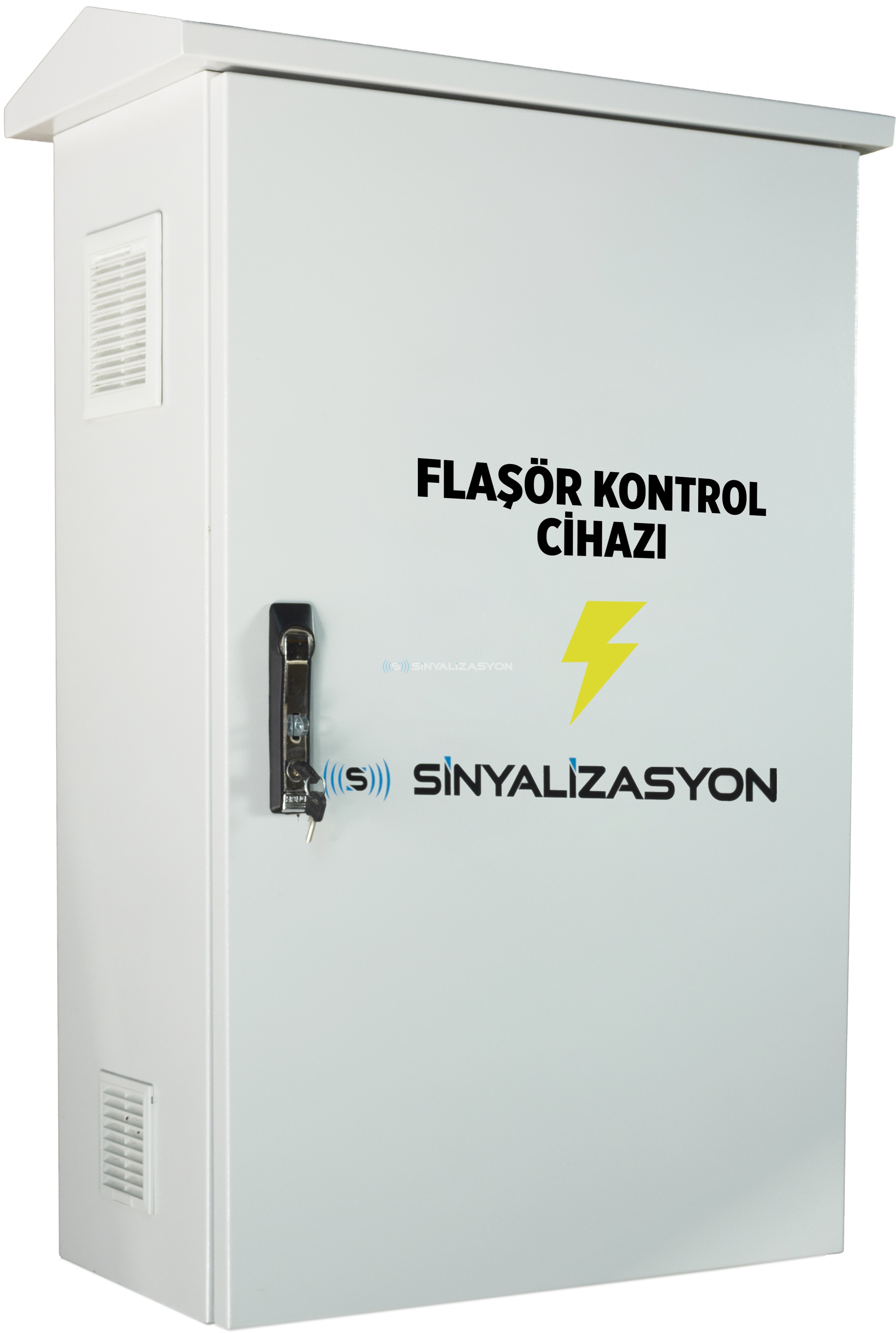

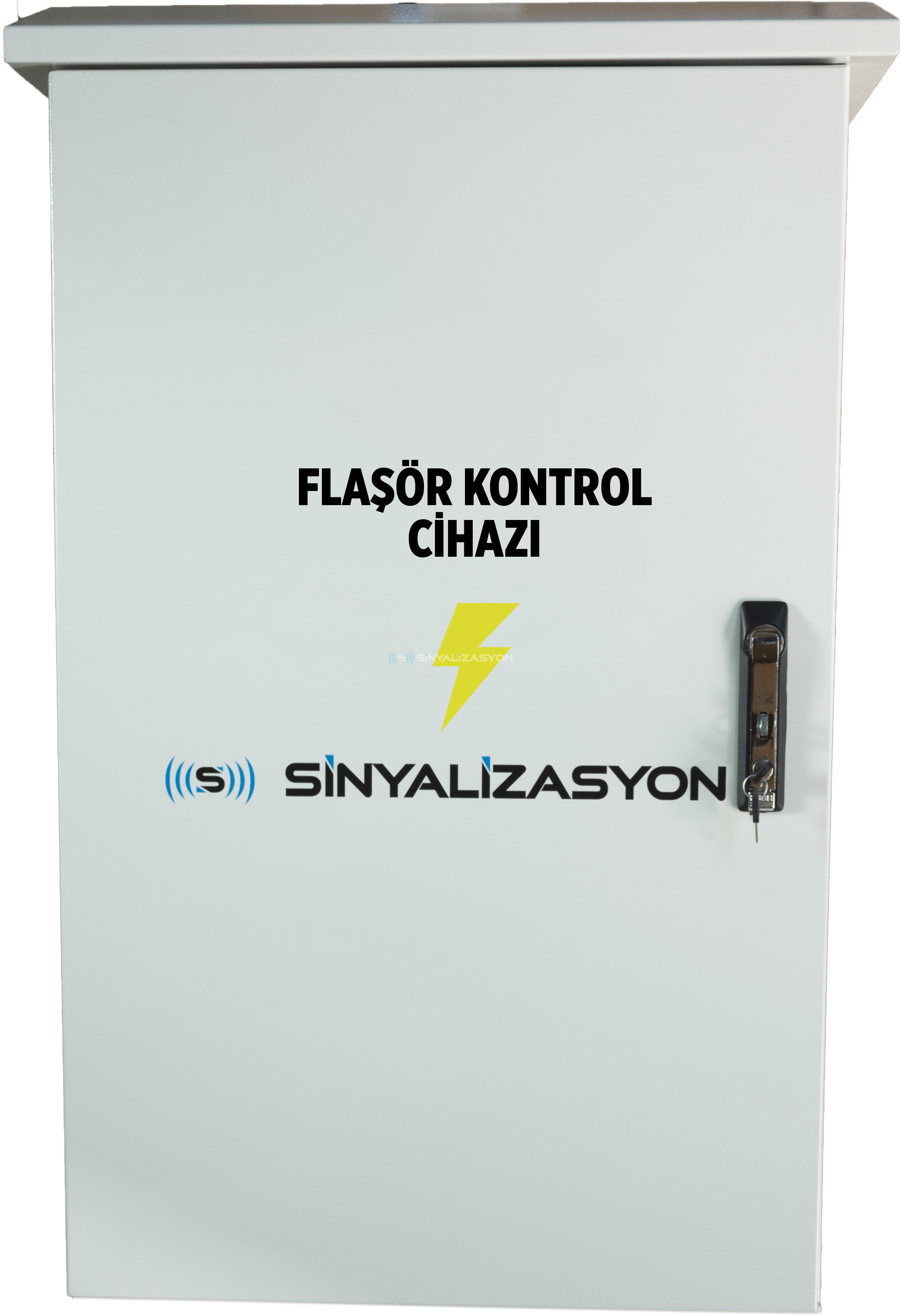

FLASHER  CONTROLLER DEVICE

FLASHER CONTROLLER DEVICE

Code : FLK06

Category : Intersection Controller Devices



Flasher Controller Device,

● It is used to control the flashers installed at roads with sharp bends, driving with high speeds, and occured various weather conditions (foggy, rainy, snowy) , It stimulate the driver's attention visually,
● Facilitates driving,
● It is used to make the driving more safety and comfortable.
With the help of the setting switch located on the device, it controls the output ends in various operating modes and enables the desired warning flashes to come on.
 The following operating modes can be selected with the switch on device. Detailed information about setting the modes is shown in the user modes section.
>  Sequential combustion (All outputs are flashes based on sequence pre-uploaded in the device).
>  Single combustion (All outputs are flashes at the same time).
>  24-hours operation (All outputs are flashes at nights and cut off the flashes in daylight.).
>  Operation in the 0-4 sec. range (All outputs flashes in the specified range).

● Up to 8A output can be connected to each output.
● There is “4“ AC output on the device; Up to 60 LED modules with 8 watt can be connected to each output.
● Light sensitivity levels is adjustable via photocell switch input on device.

● The time clock can be connected to the device to work at the desired time.


Product  FLK06
Product Category Signalization Products
Operating Voltage 5-30V
Power Consumption 5W
Operating Temperature -10C to 55C
Load 4<Load<=60
Light Sensivity +
Time Settings +
