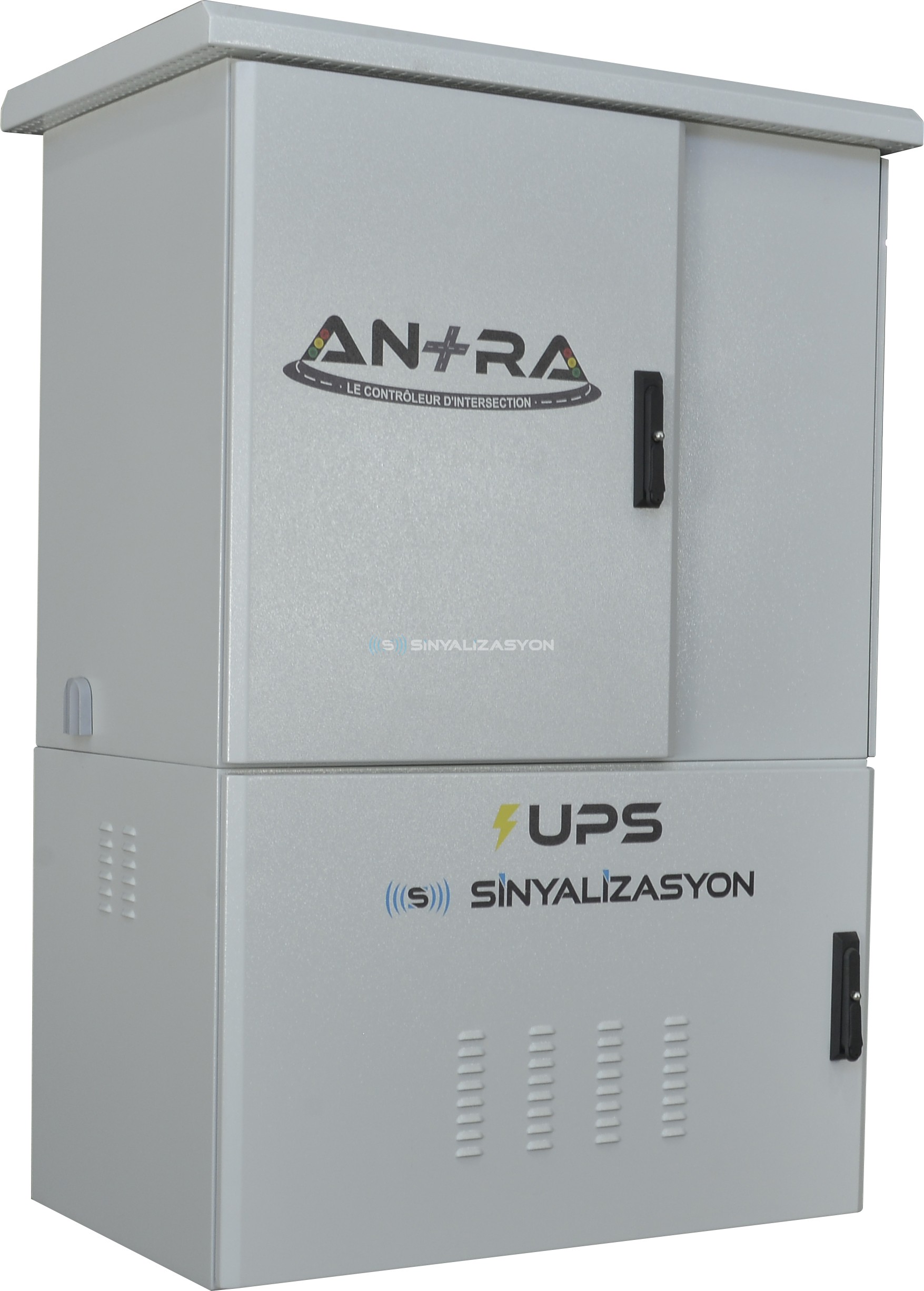

ANTRA+ PLUS INTERSECTION CONTROLLER DEVICE

Code : Antra32+

Category : Intersection Controller Devices

Technicial Specifications
Gallery
Documents
Video

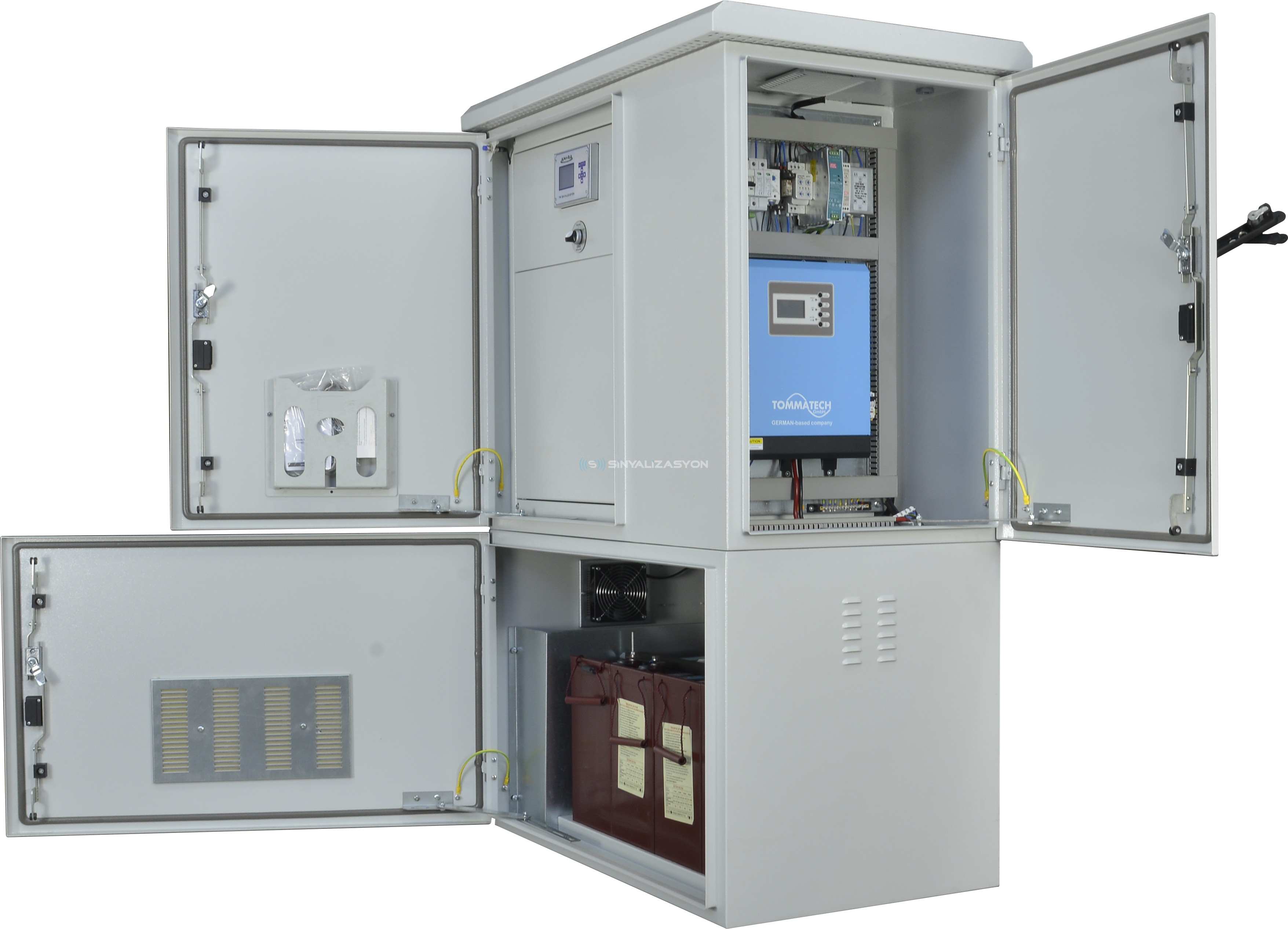

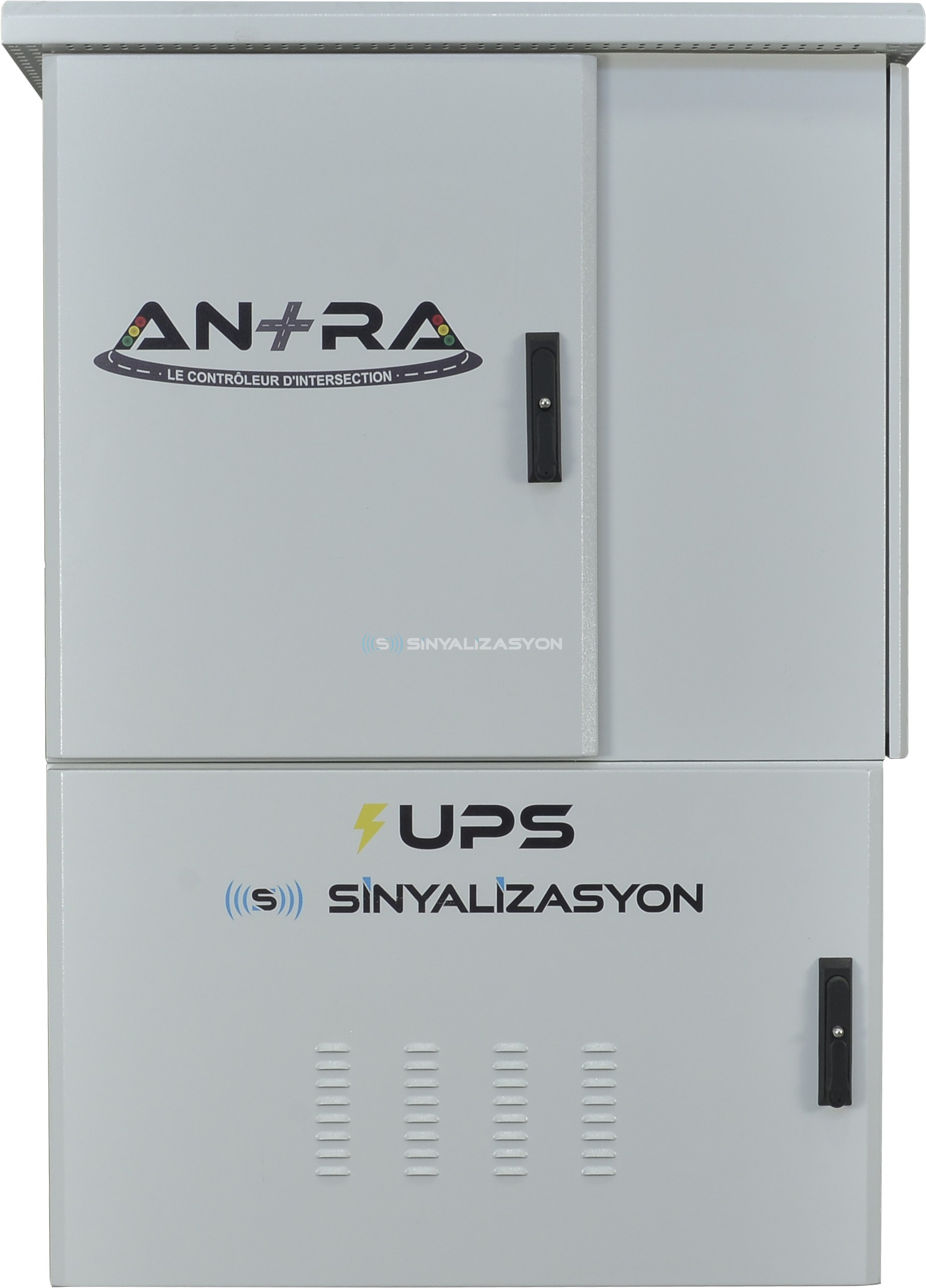

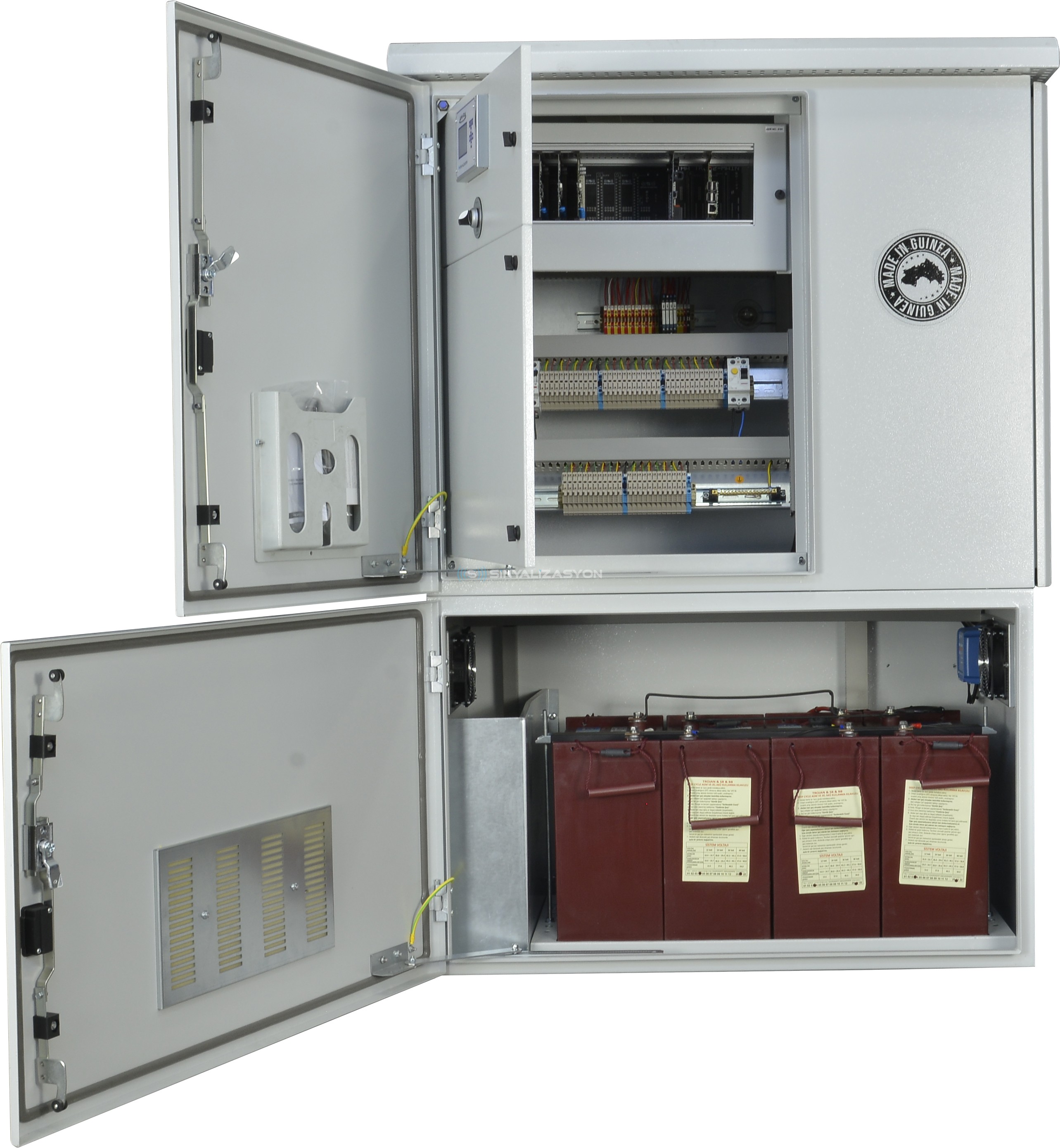

ANTRA + PLUS Intersection Controller Device is manufactured by Sinyalizasyon Electronics to protect the device from power outages, electricity problems caused by high-low voltage, electricity problems caused by bad mains frequency, and network fluctuations. It can protect the device and keep the stability on the junction with its internal UPS (Uninterrupted Power Supply) and voltage regulator. It ensures the continuity of the signaling system without reflecting the interruption to the intersection control system in power cuts. The intersection system can be customized to use specific structures and specific panel designs in 1kVA-7kVA power range. According to its battery capacity, it is capable of feeding an average intersection between 8 hours and 120 hours. In areas deprived of electrical energy, it is possible to operate the system with Smart Hybrid Inverter independently from the network as Off-Grid via the Solar Panel connection.

EN 50556 and TS HD 638 S1 and TS EN 12675 and EN 50293 IP-65 is certified.

ANTRA is an Intersection Control Device produced by Sinyalizasyon Electronic to providing traffic regulation and pedestrian safety. The Intersection Control Device is a technology that operating the traffic signal lights and providing environmental safety with built-in infrastructure built on existing junctions. With the safety functions on the device, lamp outbreaks, infrastructure problems, police control, detector, and green wave systems features are presented to users. Besides, owing to GPS and internet connection, date-time shifts and automatic summer and winter time adjustments are made automatically. Our device is compatible with Windows, IOS, and Android-based operating systems. Through the software developed by us, it is presented to you a clear and easy operating and installation. Because it is entirely our own production, you are ensured the continuous technical support, quality in production, fast delivery.

Product Code	Antra64+
Product Category	ANTRA Intersection Controller Device
TECHNICIAL SPECIFICATIONS
Operating Voltage	220-230 VAC
Operating Output Voltage	220 VAC or 42 VAC
Operating Frequency	50 Hz
DC Power Supply oltage	24 VDC
Power Supply pfc	>0.9
Device Leakage Current Protection Fuse 0.3A	OK
Human Leakage Current Protection Insurance 0.03A	OK
Lightning Protection Phase, Neutral Parafudr 40KA	OK
20a abs rfi filter dirty mains filter	OK
Mono phase electricity meter	OK

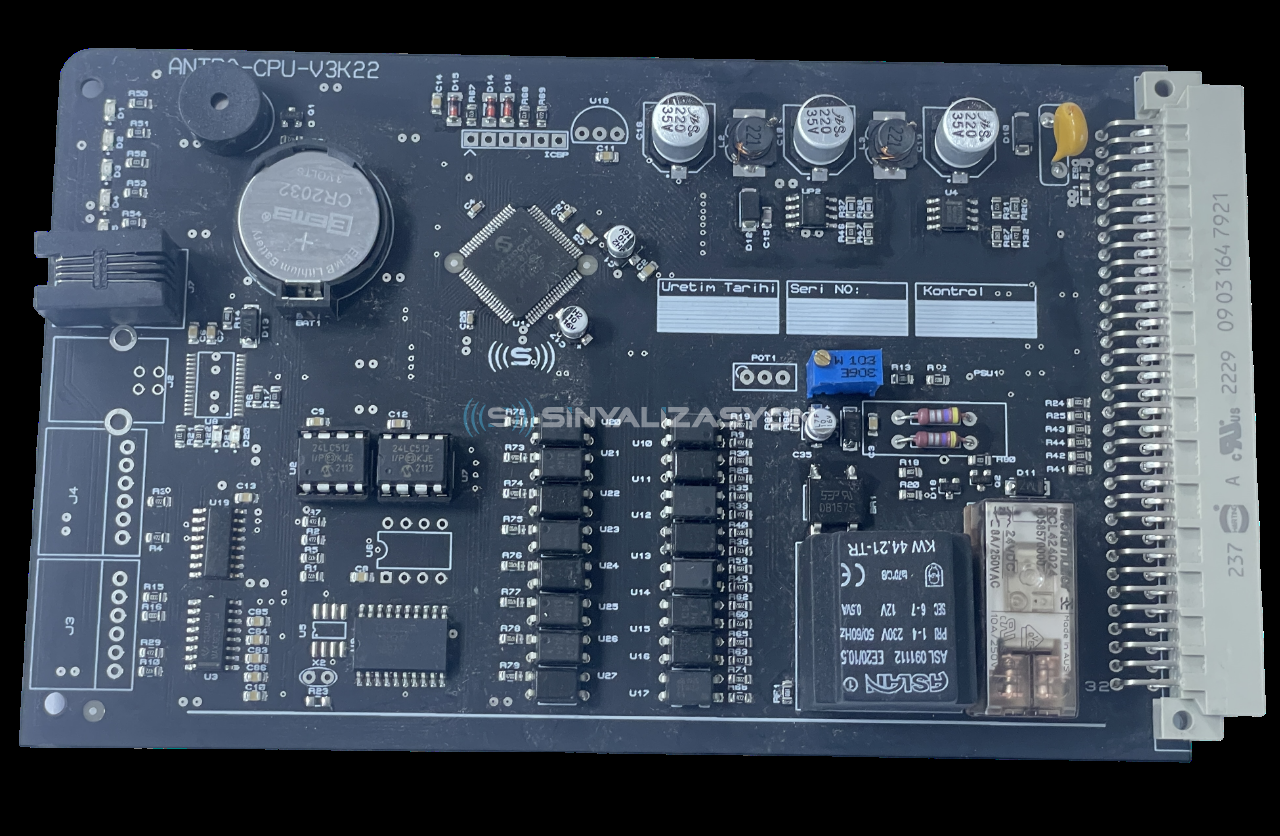

CPU program card	OK
SSM output card	OK
HMI display card	OK
HEPI modem card (optional)	OK
Programming usb-rs485-tablet pc usb-mobile phone and pc wi-fi-3g modem remote programming	OK
Program or flash with manual position switch	OK
Pedestrian button feature (optional)	OK
Police control feature (optional)	OK

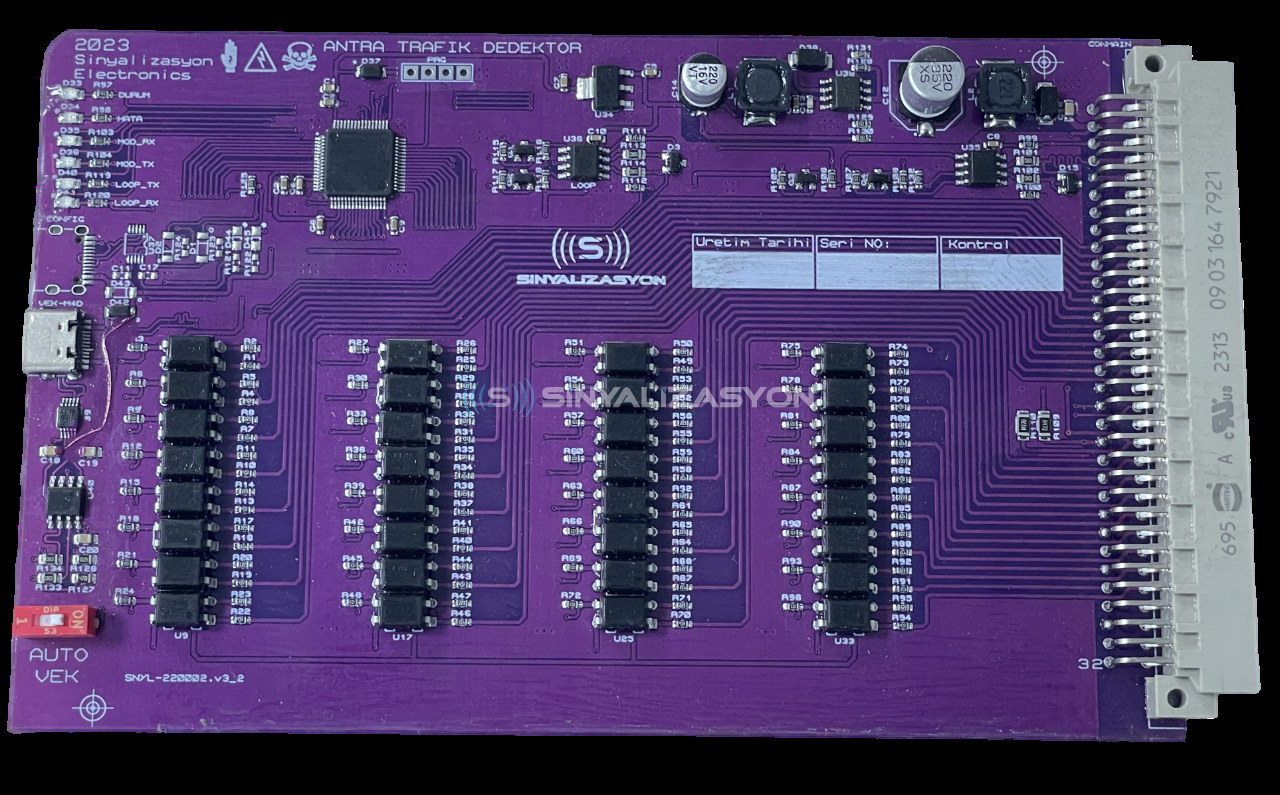

Detector or pulse detector feature (optional)	OK
Interval signaling according to vehicle count and traffic intensity by camera (optional)	OK
Ambulance priority control module (optional)	OK
Full access via HEPI modem card to the central system via the skada room (optional)	OK
Full access via manual personal computer with HEPI modem card	OK
Getting the program in the device	OK

Adjustable Features
Ability to adjust the Flemish brake reaction time.	Ability to adjust the Flemish break reaction time....
Flash or shutdown preference in case of failure and error.	200ms or 1sec flash adjustment time.
Phase contact	Line contact
Exit failure	AC voltage range
DC voltage range	Hz frequency range
Fault and transaction logs	Command transaction records
