• Touch Sensor
• Acoustic Sound (Position and Audible Warning)
• Programmable Computer Interface
• Light and Strong Body Structure
• Easy installation
• High Impact Resistance
• Long Life Expectancy (> 5 years)
• Low Power Consumption

Product Code	SYB06
Sizes	39*13*13cm
Housing	PolycarbonateUV.
Ingress Protection	IP65
Operating Voltage	220VAC (100-240VAC)
Power Consumption	<5W
Detection	Touch Sensor
Weight	1,9kg
Computer Interface	OK
Android Interface	OK
Operating Temperature	-40°C +70°C
Night Mode	Available

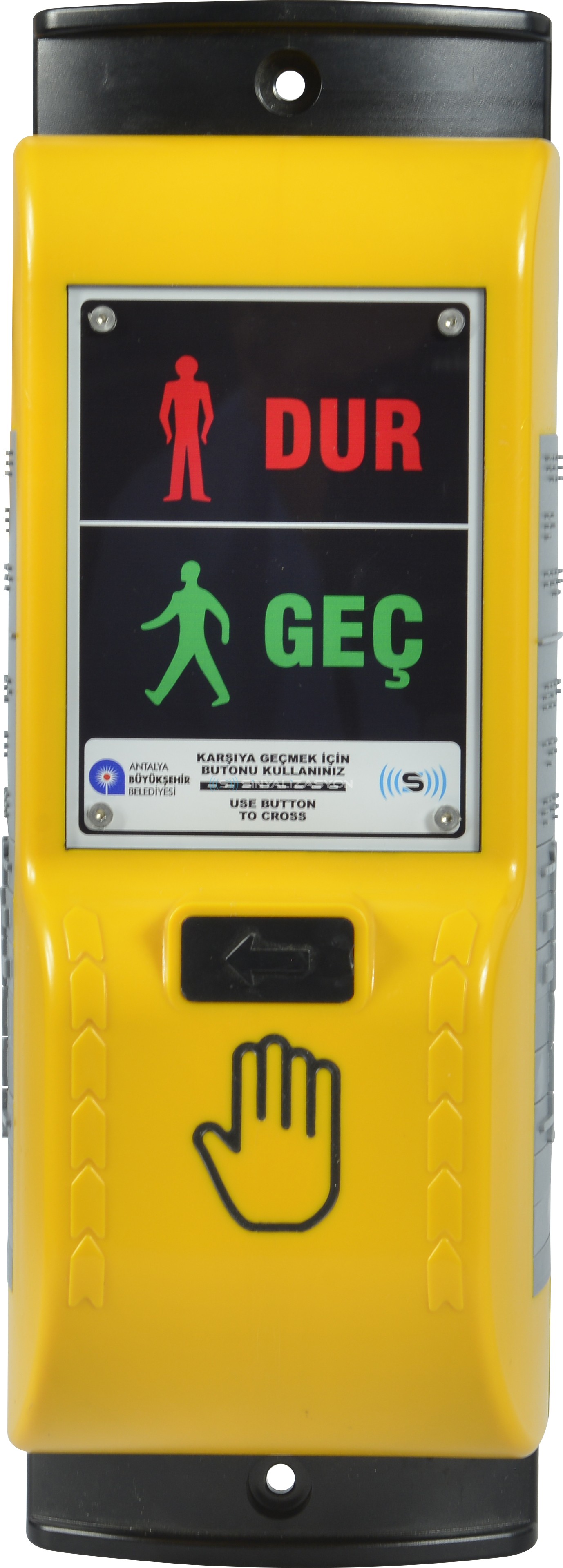

The purpose of the Signal Tactus Pedestrian Buttons is to inform the intersection control device by making touch sensing in the road section where the drivers are traveling at high speed, there are intense vehicle crossings and there are no overpass and underpass facilities, and to make the transportation easier for the pedestrian.

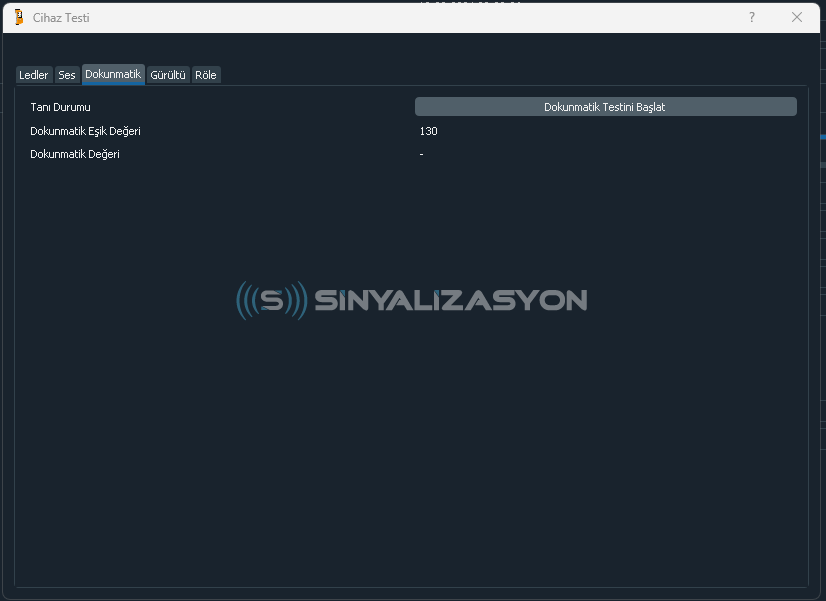

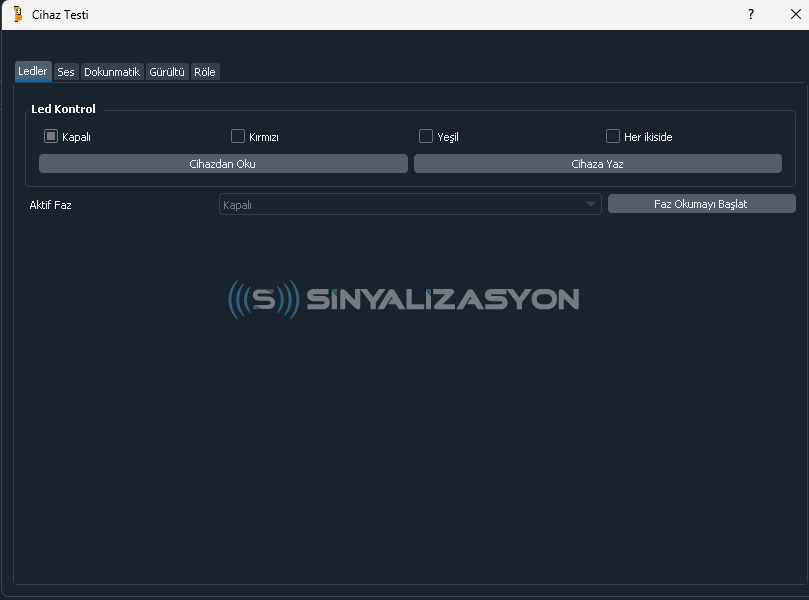

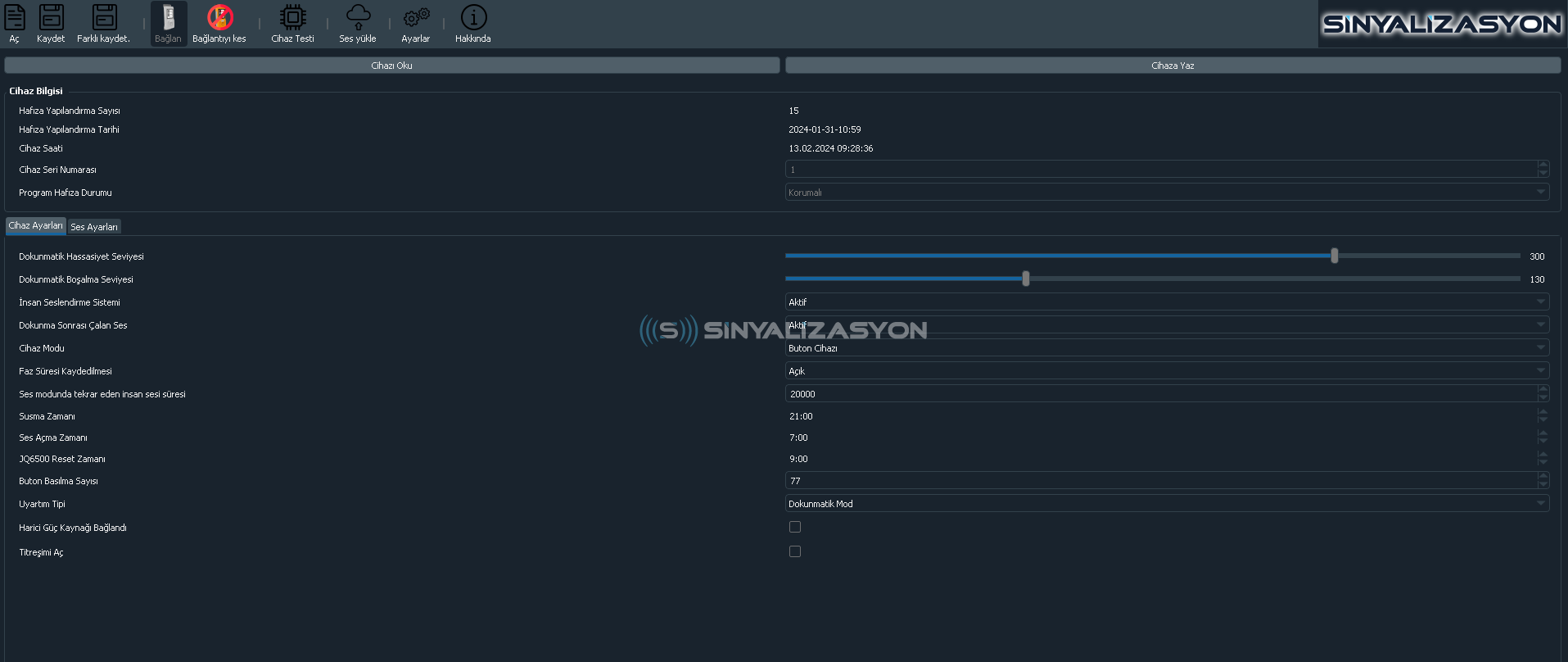

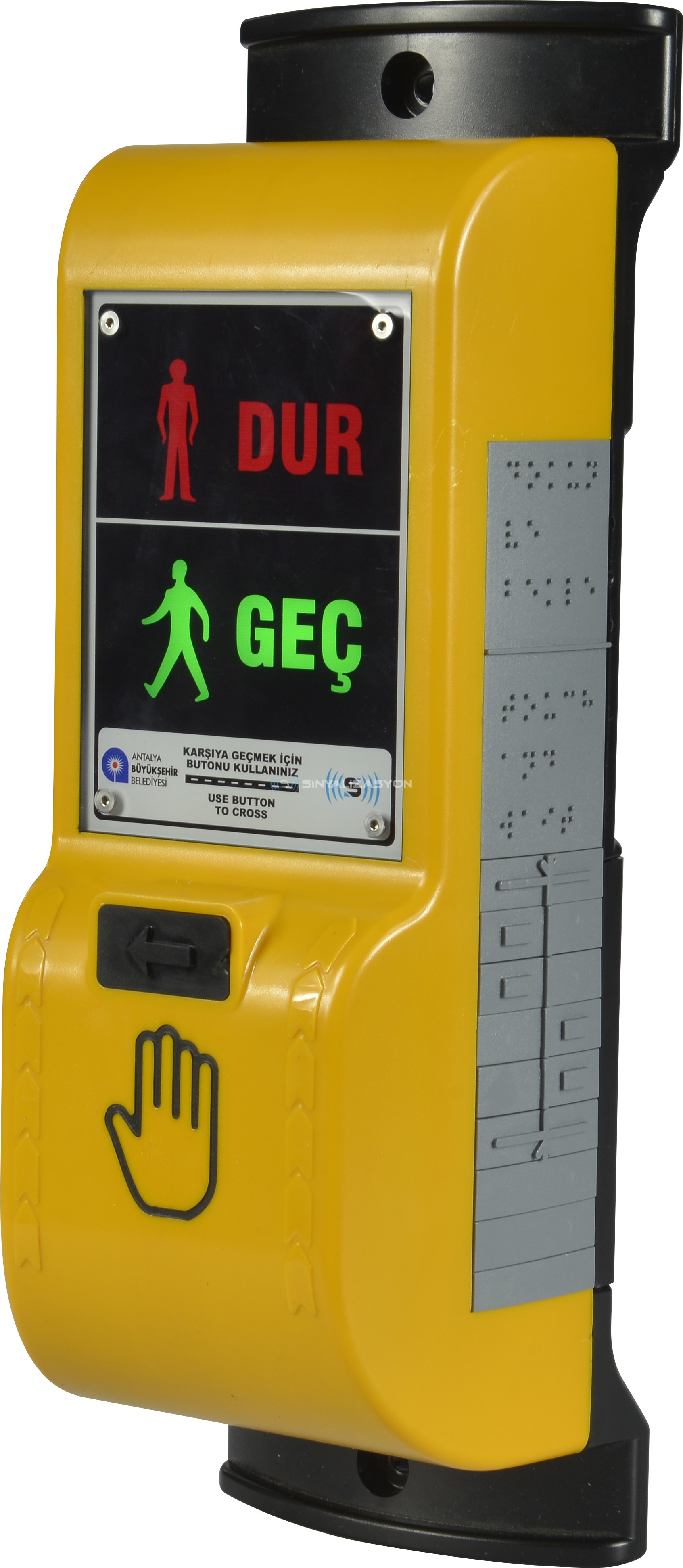

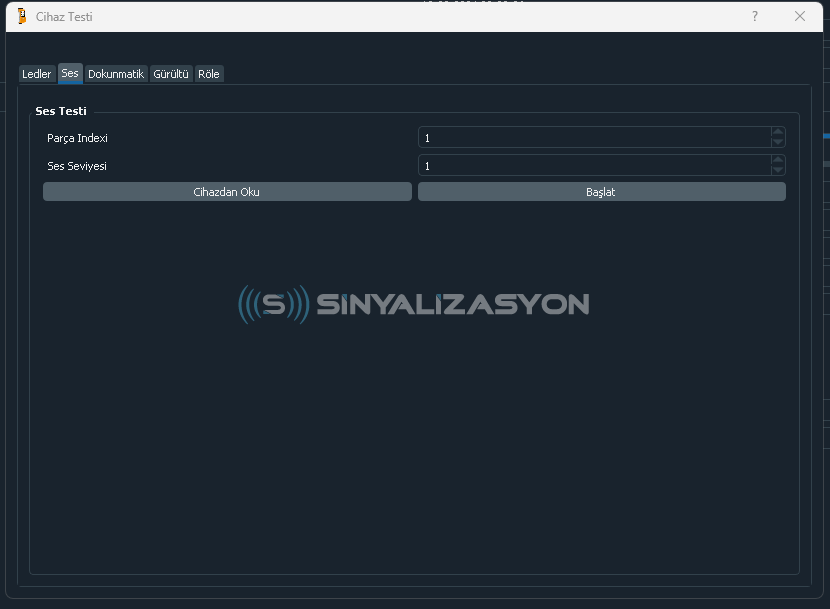

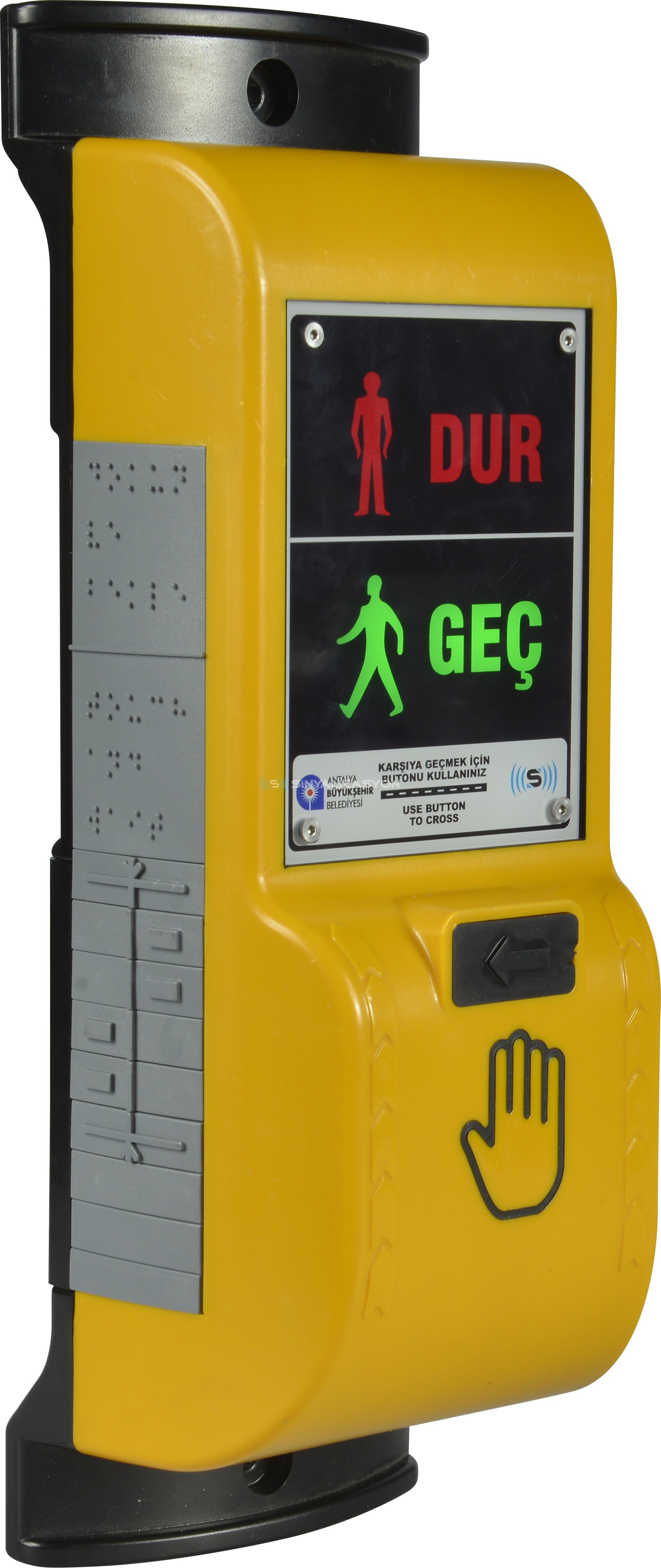

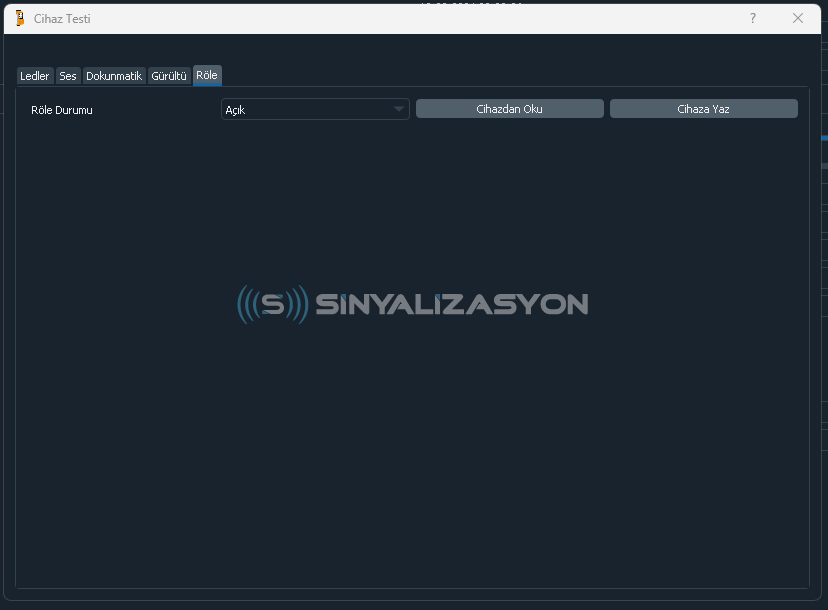

The Signal Pedestrian Button is designed with a touchscreen, acoustic stimulation according to the ambient sound, in order to facilitate pedestrian and driver traffic safety. Signal Pedestrian Buttons can program the location of the intersection, human voice, and robot voice selection, according to the ambient sound or fixed stimulation sound and level selection via computer with its user-friendly and understandable programming interface. The "STOP" - "LATE" figures on the module can be redesigned specific to the institution or the region and can be lit in red and green. Considering the visually impaired pedestrians in the design of the device, there is an intersection plan with the Braille alphabet on the left side of the device, and an explanation with the Braille alphabet on the right side. Thanks to its robust body structure, it can be easily installed on the rubber apparatus at all signalized intersections by mounting it on a 102mm and 114mm diameter pole.
