• Application – urban light signaling
• Input voltage - AC85V ~ 265V, 50/60HZ
• Power factor 0.92
• High intensity LED light source – low energy consumption
• 5mm LED (DIP) by EPISTAR
• Long life cycle – more than 80,000 working hours
• High waterproof and dustproof protection grade
• Compliance with CE, RoHS, EN12368, ISO9001

Color	LED Qty	Intensity	Wave length	Power Consumption
Red Man	81pcs	≥20000cd/m²	620～630nm	≤10W
Green Man	177pcs	≥40000cd/m²	503～508nm	≤10W
Display	R : 256pcs G : 256pcs	R ≥20000cd/m²  G ≥40000cd/m²	R : 620～630nm   G : 503～508nm	R ≤10W   G ≤10W

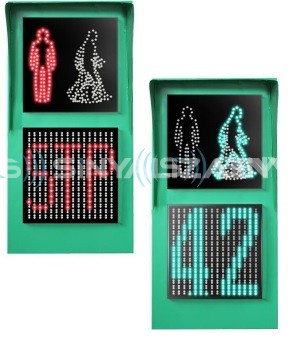

Special requests : 1 . With automatic dimming function 2. buzzer sound with countdown (at the bottom) 3. red signal the counter show “ STP “ with beep sounds ( 4 seconds 1 time) green signal the countdown show digits with beep sounds ( 1.28 second 1 time till last 10 seconds 1second 2times )
